Why This Comparison Matters for Your Design

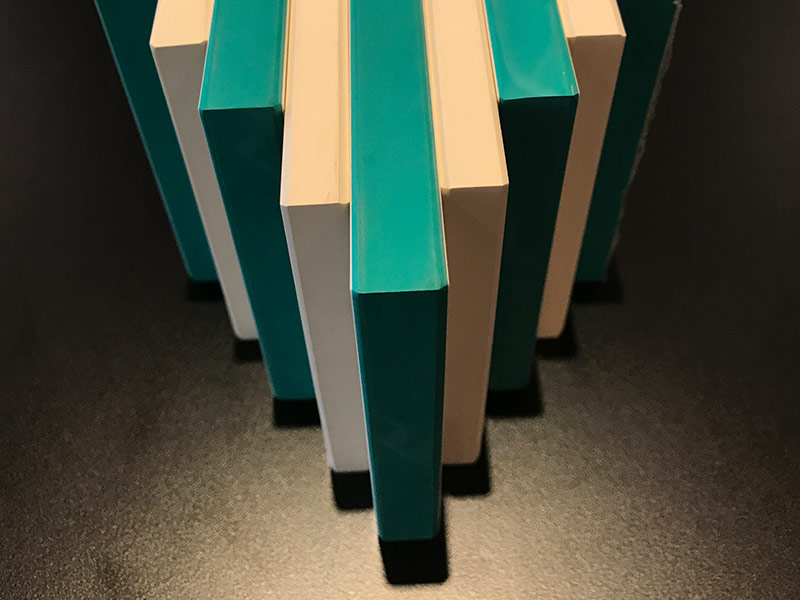

What Do We Mean by “Solid Laminate”?

Solid Laminate Structure Explained

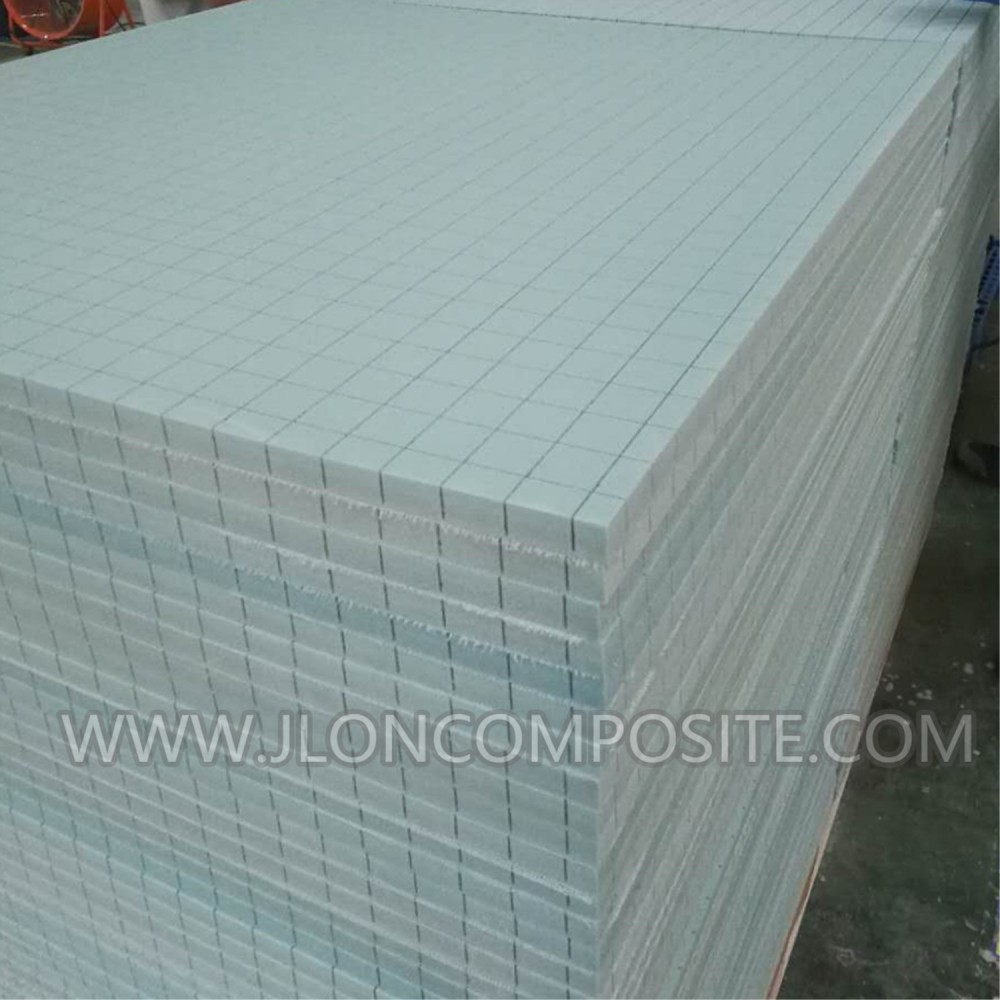

What Is a PVC Foam Core Sandwich Structure?

PVC Foam Core Sandwich Explained

A PVC foam core sandwich structure consists of:

Two thin but strong composite skins (glass or carbon fiber)

A lightweight PVC foam core bonded between the skins

In this configuration:

The skins carry tensile and compressive loads

The PVC foam core carries shear loads and maintains skin separation

Structural thickness is achieved with minimal added weight

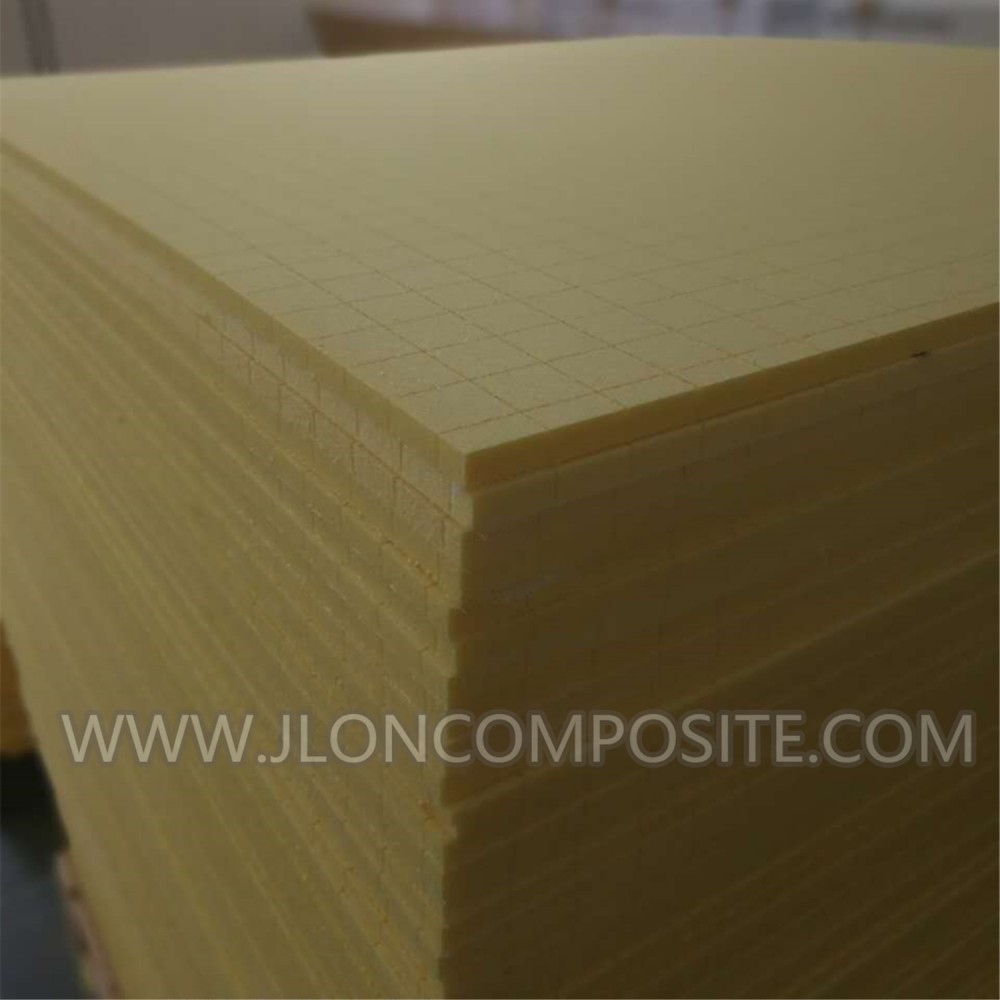

PVC foam cores are available in a wide range of densities, allowing you to tailor the structure for:

Shear strength

Compression resistance

Impact performance

Local load requirements

This flexibility is the reason PVC foam core has become a standard solution for modern composite structures.

Weight Comparison: Where the Difference Becomes Obvious

Solid Laminate Weight Behavior

When you increase stiffness in a solid laminate:

You add more fabric

You add more resin

You increase both material cost and part weight

For large panels, decks, bulkheads, or shells, this approach leads to excessive structural mass that provides diminishing performance returns.

PVC Foam Core Weight Advantage

With a PVC foam core sandwich structure, you increase stiffness mainly by increasing the distance between the skins, not by adding mass. The foam core contributes very little weight compared to fiber and resin.

In practical engineering terms:

You can reduce structural weight by 30–60% at equivalent stiffness

Resin consumption is significantly lower

Handling and installation become easier

If weight reduction matters in your design, solid laminate construction is rarely the most efficient solution.

Structural Performance Comparison

Bending Stiffness and Deflection Control

Bending stiffness is often the key design driver for panels and shells.

In a solid laminate:

Fibers close to the neutral axis contribute less to stiffness

Adding thickness is structurally inefficient

In a PVC foam core sandwich:

Skins are placed far apart

The moment of inertia increases dramatically

Deflection under load is significantly reduced

For the same weight, a sandwich panel with PVC foam core will always deliver higher bending stiffness than a solid laminate.

Shear and Compression Performance of the Core

PVC foam core is not just a spacer—it is a structural element.

By selecting the appropriate core density, you can ensure:

Adequate shear strength for panel loading

Sufficient compressive strength under skins

Resistance to local buckling

In high-load areas, you can locally increase foam density or combine the core with inserts, allowing you to engineer strength exactly where you need it, instead of overbuilding the entire laminate.

Fatigue and Impact Behavior

If your structure is exposed to cyclic loads, vibration, or impact, sandwich construction offers clear advantages.

Compared to solid laminates, PVC foam core sandwich structures:

Distribute stresses more evenly

Reduce crack initiation and propagation

Absorb impact energy more effectively

This makes them particularly suitable for marine hulls and decks, wind turbine components, and transportation structures.

Manufacturing Considerations: How Your Process Is Affected

Solid Laminate Manufacturing

Solid laminates often lead to:

High resin uptake

Resin-rich zones

Increased part weight variability

Longer lay-up times

Thickness control can also become difficult, especially in large parts.

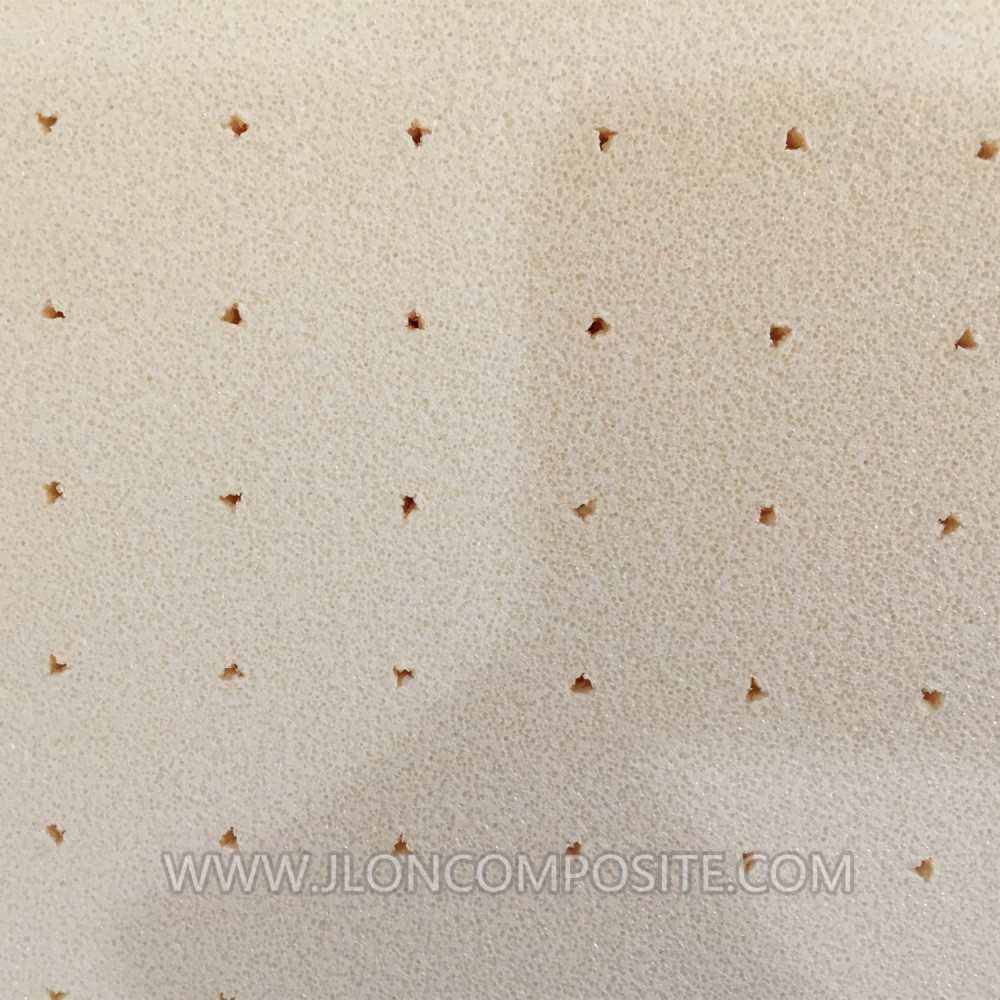

PVC Foam Core in Composite Processes

PVC foam core is compatible with:

Hand lay-up

Vacuum infusion

RTM and light RTM (LRTM)

From a production perspective, you benefit from:

Controlled resin flow

Stable laminate thickness

Reduced resin consumption

Improved dimensional consistency

For series production or large structural parts, this translates directly into higher process reliability and lower total cost.

Cost Considerations: Looking Beyond Material Price

When Should You Use Each Structure?

Use Solid Laminate When:

Parts are small or highly localized

Weight is not a concern

Extremely high point loads are present

Design simplicity is the main priority

Use PVC Foam Core Sandwich When:

You are designing large panels or shells

Weight reduction is critical

Stiffness and deflection control matter

Your process involves infusion or RTM

Long-term fatigue performance is required

How JLON Supports Your PVC Foam Core Applications

Conclusion: Making the Right Structural Choice

Solid laminates remain a practical solution for specific applications, but they are not structurally efficient for modern lightweight design.

If your goal is to reduce weight, improve stiffness, optimize material usage, and enhance manufacturing efficiency, PVC foam core sandwich construction offers clear advantages. By understanding how these two structures differ, you can make informed decisions that improve both performance and cost-effectiveness in your composite designs.
