Is Carbon Fiber Conductive? Electrical Properties Explained for Engineers

Introduction – Why Engineers Ask About Carbon Fiber Conductivity

Electrical Conductivity of Carbon Fiber

How Carbon Fiber Conducts Electricity

Carbon fiber is inherently electrically conductive because its carbon atoms are arranged in a crystalline structure similar to graphite. This allows electrons to move along the fiber axis, giving the material its conductive properties. Key factors influencing conductivity include:

Fiber Type: Standard modulus fibers have moderate conductivity; high-modulus or ultra-high modulus fibers generally exhibit higher conductivity.

Fiber Orientation: Conductivity is anisotropic, meaning it is significantly higher along the longitudinal direction of the fibers than across them. This is particularly important in unidirectional fabrics where electrons move primarily along the fiber axis.

Resin Matrix Effects: While embedding carbon fibers in resins (epoxy, polyester, or vinyl ester) reduces overall composite conductivity, the material remains significantly more conductive than glass fiber composites. Resin selection, curing conditions, and fiber volume fraction can all affect the final conductivity.

Engineering Implications

For B2B engineers, carbon fiber conductivity introduces both opportunities and challenges:

Grounding: Battery enclosures or conductive housings require properly designed conductive paths to safely dissipate static charges.

EMI Shielding: Panels made with carbon fiber can effectively reduce electromagnetic interference in electronic systems without adding metallic layers.

Insulation Design: Unintended contact between conductive carbon fibers and sensitive electronics must be avoided. Engineers may need to integrate insulating layers or coatings in critical areas.

Hybrid Composites: Combining carbon fiber with glass fiber allows selective conductivity, offering insulation where needed and conductivity where beneficial.

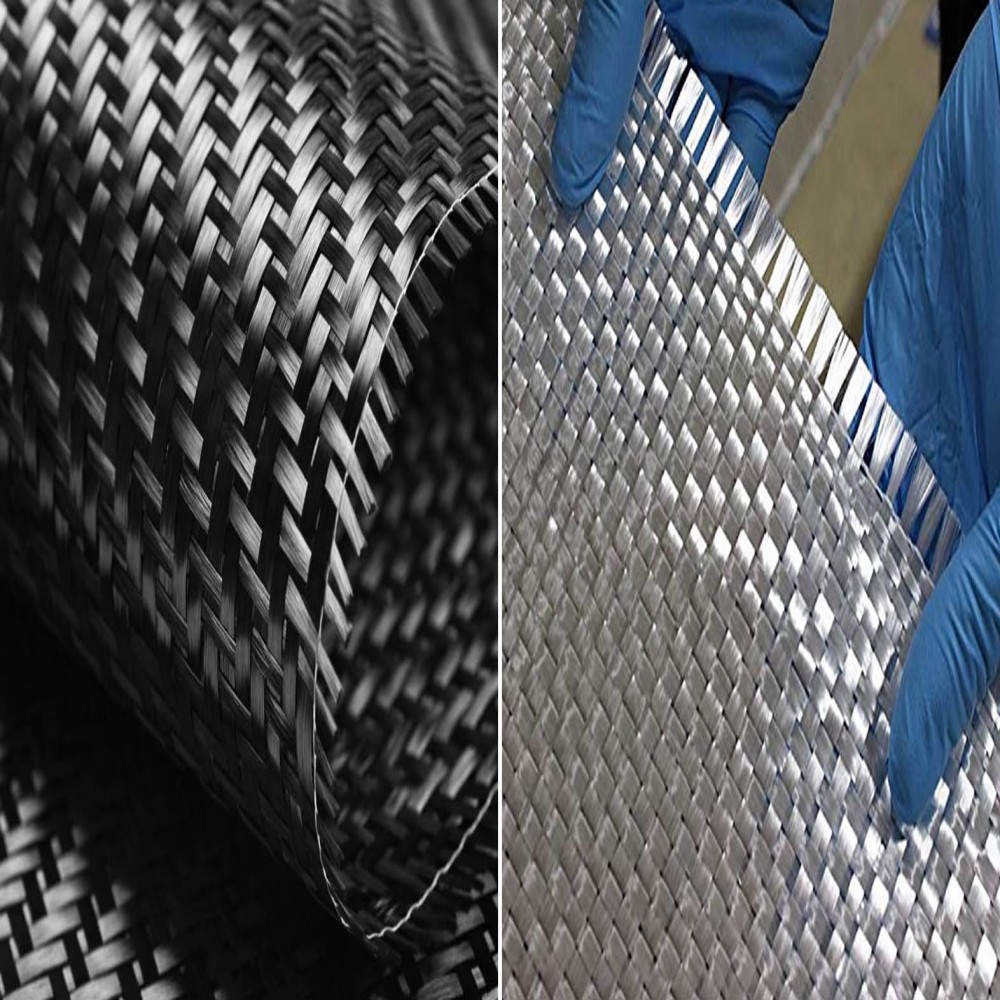

Carbon Fiber vs Glass Fiber – Electrical Comparison

Material	Electrical Conductivity	Typical B2B Applications
Carbon Fiber	Conductive	EMI shielding, grounding, conductive panels, structural composites
Glass Fiber	Insulating	FRP poles, insulation panels, non-conductive housings, lightweight structures

Key Takeaways for Engineers

B2B Applications Where Conductivity Matters

Automotive & EV Industry

Battery Enclosures: Carbon fiber composites conduct electricity for grounding but require insulation in sensitive areas.

Structural Panels: Lightweight, strong panels can double as EMI shields.

Electronic Housings: Carbon fiber composites allow efficient electrostatic dissipation.

Aerospace & UAV

Aircraft Fuselage: Conductive carbon fiber layers protect avionics from EMI.

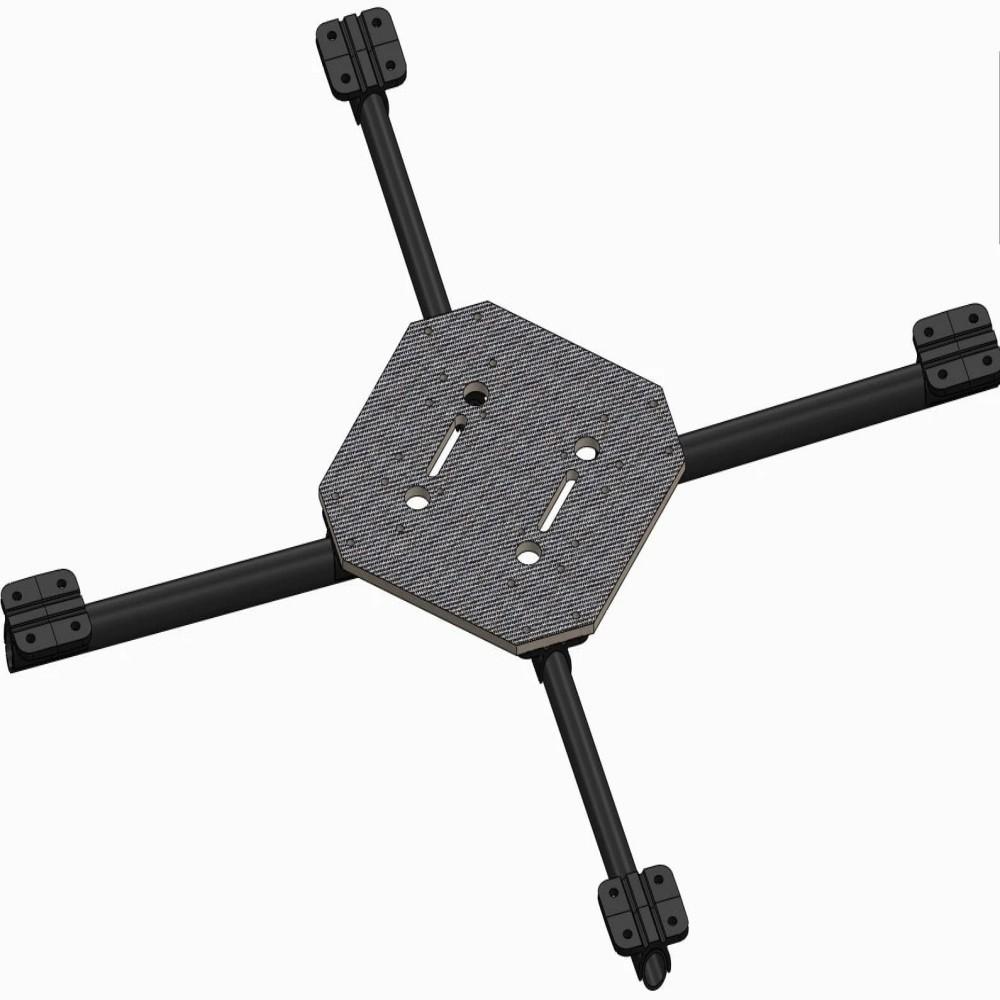

Drone Frames: High-strength, lightweight, and conductive for grounding.

EMI Shielding Supports: Replaces metallic shields with lighter composite structures.

Industrial & Electronics

Antenna Mounts: Conductive carbon fiber ensures proper signal grounding.

Housing & Panels: Electrostatic discharge safe materials without metal parts.

Electronics Enclosures: Hybrid carbon/glass composites optimize insulation and grounding.

Marine & Energy

Wind Turbine Blades: Conductive carbon fiber reduces lightning strike risks.

FRP Poles: Carbon fiber for grounding, glass fiber for insulation in hybrid poles.

Engineers and procurement teams must evaluate conductivity versus insulation requirements, considering the operational environment, safety standards, and cost constraints.

Mechanical and Processing Considerations

Carbon Fiber Fabrics

Unidirectional (UD) Fabrics: High longitudinal conductivity, ideal for grounding and EMI applications.

Woven Fabrics: Balanced mechanical strength and conductivity, suitable for beams, panels, and complex shapes.

Fiber Volume Fraction: Adjusting fiber content changes conductivity and mechanical properties.

Glass Fiber Fabrics

High-Weight Fabrics: Electrically insulating, ideal for FRP poles, housings, and panels.

Hybrid Fabrics: Combine glass and carbon fibers to create composites with selective conductivity and insulation.

Process Compatibility

RTM, VARTM, and LRTM low-cost molding processes

Resin choice impacts final conductivity

Layering and orientation affect mechanical and electrical performance

Post-processing, including coatings, may be applied to fine-tune conductivity or insulation

Choosing Between Carbon Fiber and Glass Fiber

Decision Checklist for Engineers

Criteria	Use Carbon Fiber	Use Glass Fiber
Conductivity Needed	✅ Yes	❌ No
EMI Shielding	✅ Yes	❌ No
Electrical Insulation	❌ No	✅ Yes
Mechanical Strength	✅ Yes	✅ Moderate
Cost Sensitivity	Moderate	✅ Preferable
FRP Poles / Panels	✅ For conductive applications	✅ For non-conductive structures

Proper selection ensures safe, cost-effective, and performance-optimized FRP components. Hybrid designs can combine the strengths of both materials.

JLON’s Solutions – Carbon and Glass Fiber Fabrics

JLON offers high-performance carbon fiber fabrics and glass fiber fabrics optimized for RTM, VARTM, and LRTM processes.

Carbon Fiber Products

UD Fabrics: High longitudinal conductivity for grounding and EMI shielding.

Woven Fabrics: Balanced strength and conductivity for structural panels.

Applications: Conductive panels, grounding structures, EMI protective components.

Glass Fiber Products

Electrically insulating fabrics for FRP poles, housings, and panels.

High mechanical strength and cost efficiency.

Hybrid fabrics for selective conductivity applications.

JLON ensures engineers achieve high-strength, electrically optimized, and cost-effective composites suitable for automotive, aerospace, industrial, and marine applications.

Conclusion
