Carbon fiber cloth (also called carbon fiber fabric) is a textile reinforcement made from continuous carbon fiber tows interlaced in specific weave patterns. It functions as the load-bearing reinforcement when combined with thermoset or thermoplastic resin systems.
Its final composite performance depends on:
Fiber mechanical properties
Tow architecture
Weave density
Fiber volume fraction
Resin compatibility
Manufacturing consolidation pressure
Unlike chopped fiber materials, woven or unidirectional fabrics provide continuous load paths, resulting in significantly higher tensile and flexural properties.
High dimensional stability
Lower drapability
Balanced strength in 0°/90° directions
Suitable for flat structural laminates

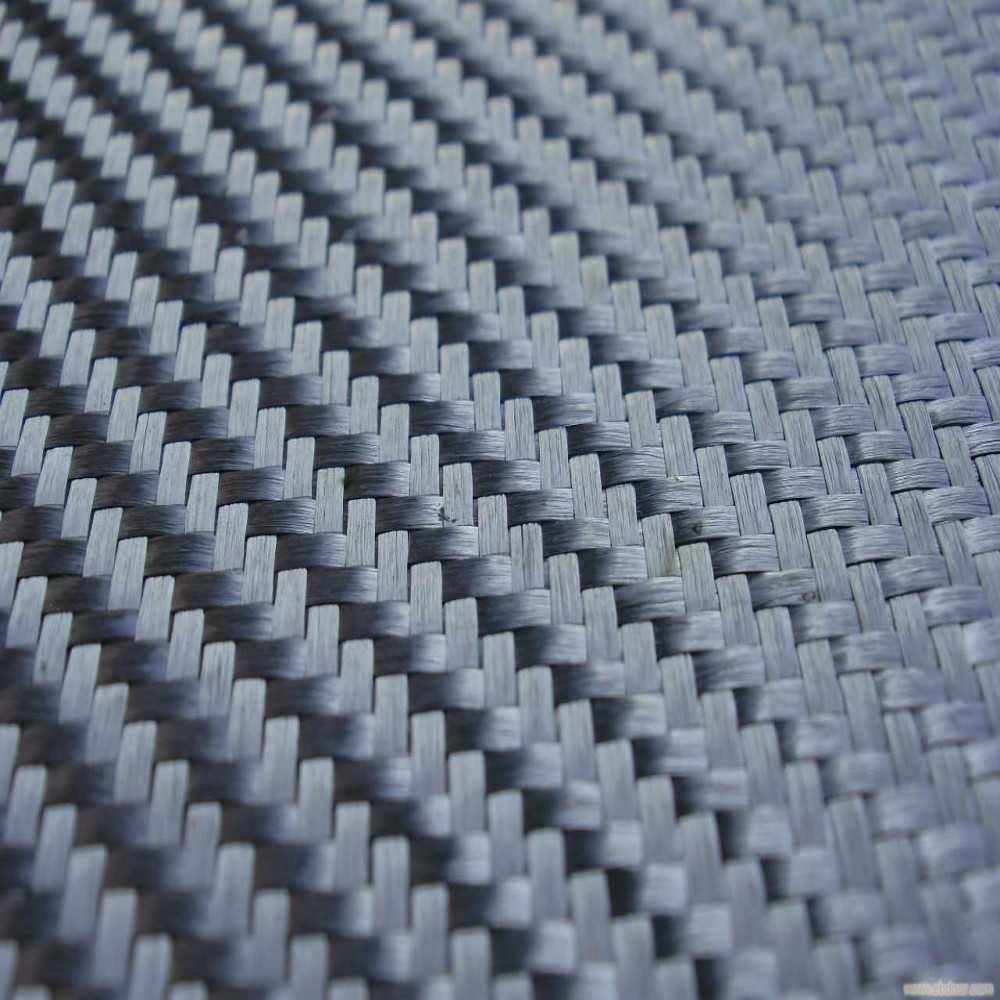

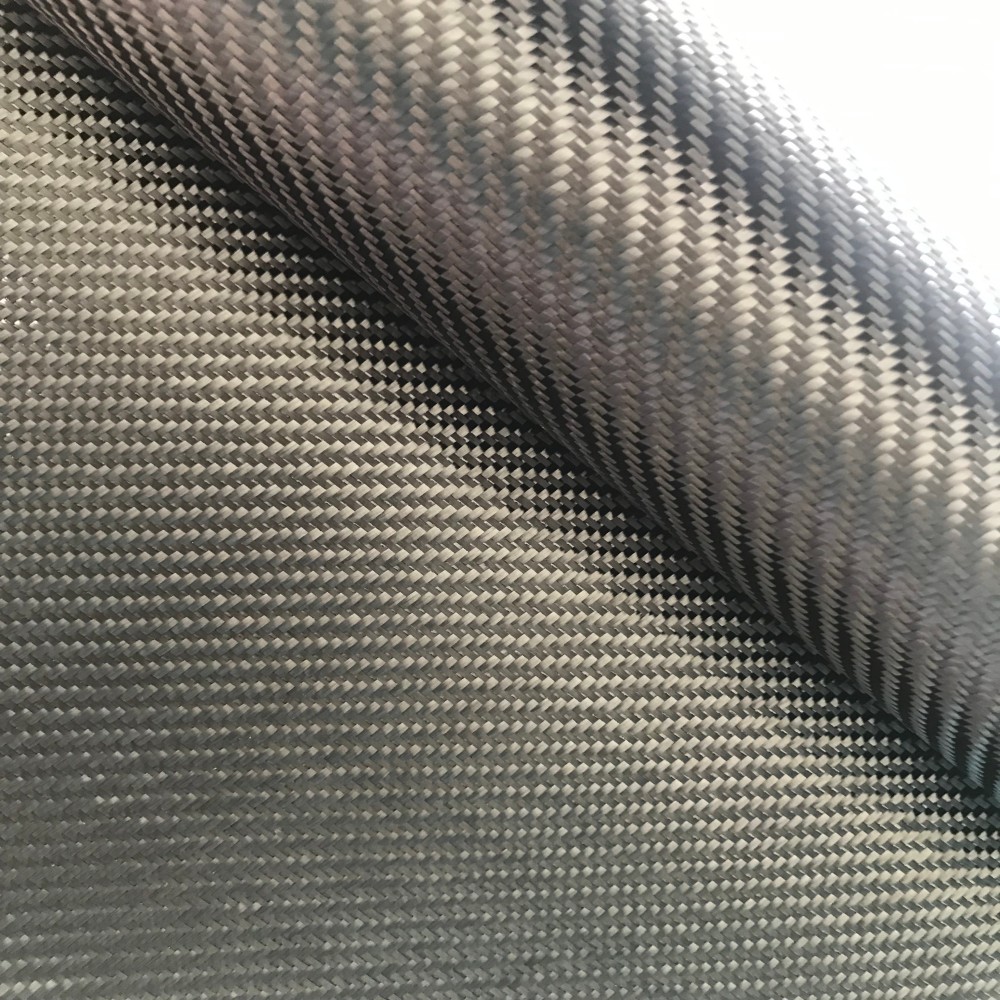

Each tow crosses two over and two under
Improved conformability
Reduced crimp compared to plain weave
Better surface aesthetics
Widely used in automotive visible components
Fewer interlacing points
Minimal fiber crimp
Higher flexibility
Suitable for complex curvature molds

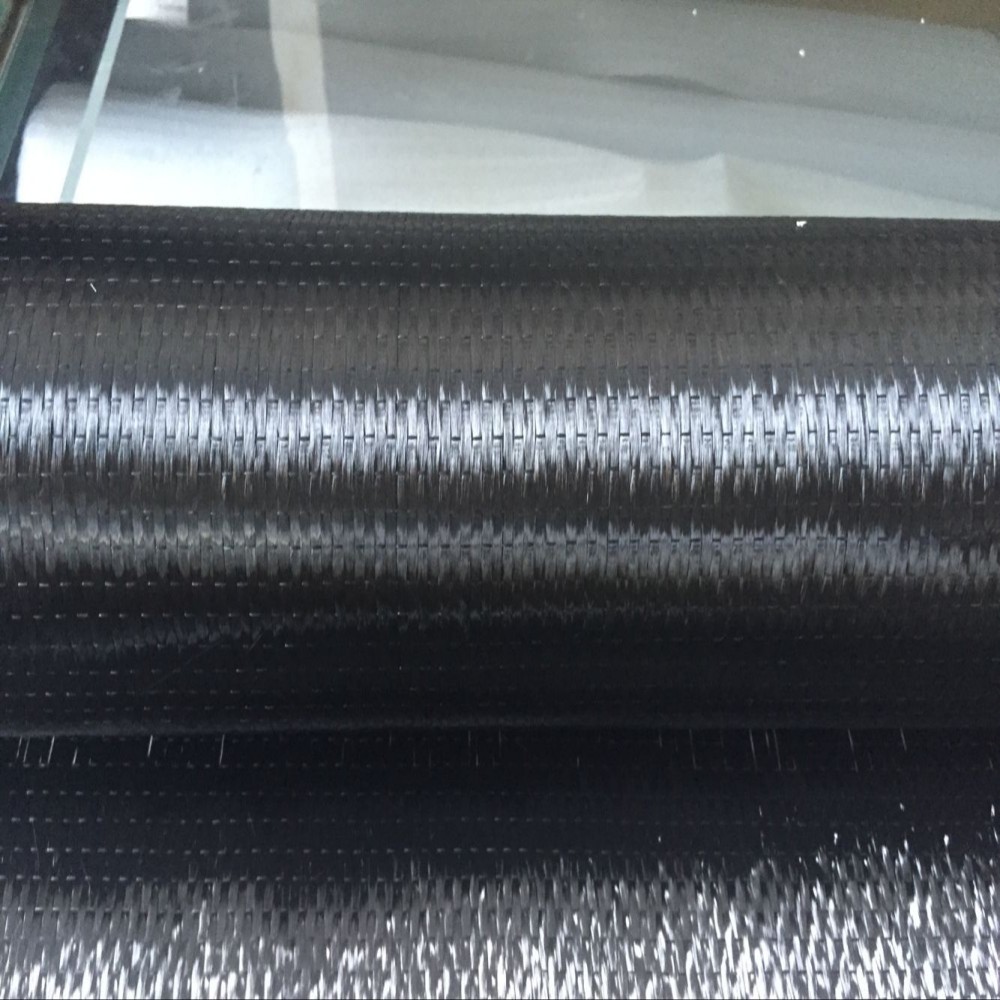

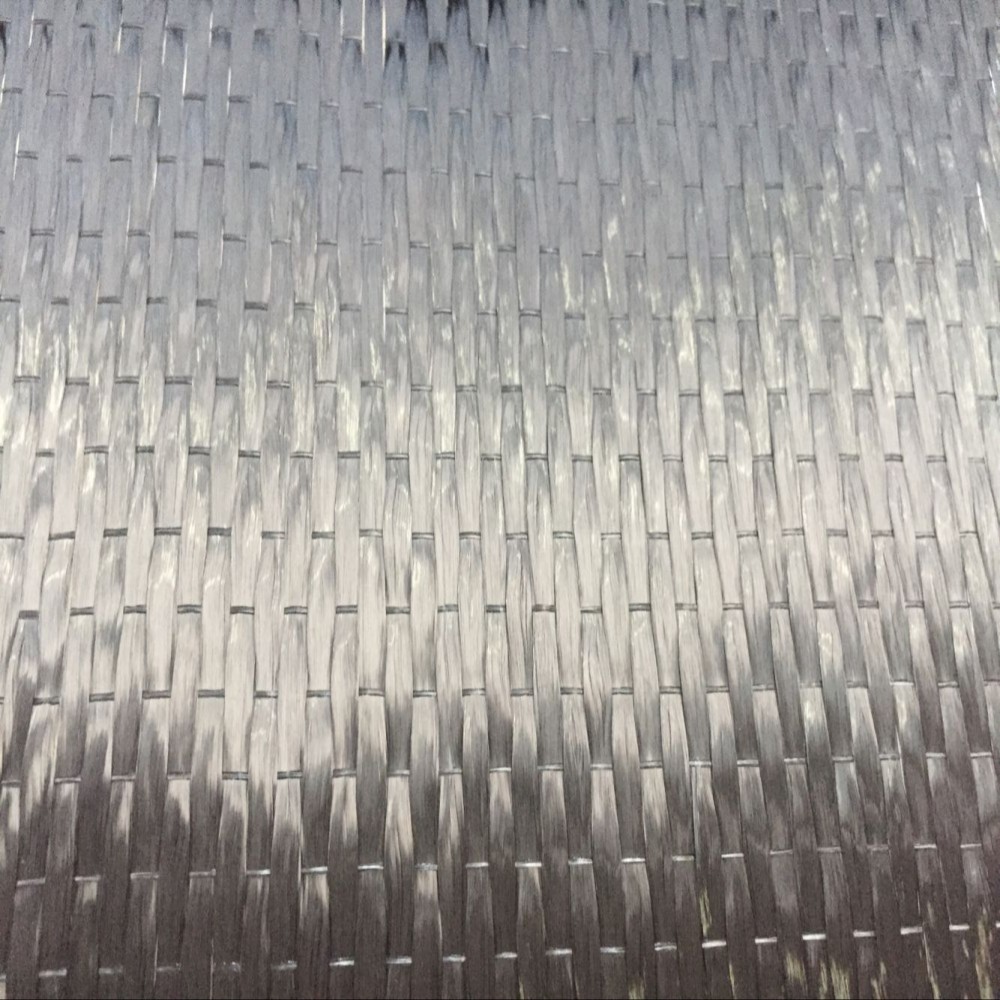

Fibers aligned in a single direction
Highest tensile strength along fiber axis
Minimal transverse strength
Essential for structural load-bearing applications
In 2026, multi-axial fabrics are also increasingly used, but woven and UD fabrics remain the core reinforcement types.
Carbon fiber grade significantly influences mechanical performance.
Grade | Tensile Strength (MPa) | Tensile Modulus (GPa) | Typical Application |
T300 | ~3500 | ~230 | General industrial |
T700 | ~4900 | ~230 | Automotive, wind energy |
T800 | ~5500 | ~295 | Aerospace, high performance |
Fabric weight (grams per square meter) affects laminate architecture in multiple ways:
Final laminate thickness
Resin uptake
Fiber volume fraction
Permeability during infusion
Layup efficiency
Advantages:
Excellent drapability
Suitable for cosmetic layers
Good for complex geometry
Limitations:
Requires multiple plies for structural thickness
Increased labor time
Most common industrial choice in 2026.
Advantages:
Balanced strength and processing
Suitable for vacuum infusion and RTM
Efficient layup speed
Advantages:
Reduced ply count
Faster layup
Suitable for thick laminates
Risks:
Resin flow restriction in infusion
Potential void formation if permeability is insufficient
Proper flow media design becomes critical for heavyweight fabrics.
Tow size refers to filament count per bundle.
3K → 3,000 filaments
12K → 12,000 filaments
24K → 24,000 filaments
3K
Finer surface
Higher cost
Preferred for visible parts
12K
Industrial standard
Balanced performance and price
24K
Suitable for large structural parts
More economical for bulk applications
Important: Tow size affects fabric texture and permeability but does not alone determine tensile strength.
Material selection must align with process characteristics.
Key requirements:
Good resin wet-out
Moderate GSM
High conformability
Twill weave often performs better in manual layup for curved molds.
Critical technical considerations:
In-plane permeability
Resin viscosity
Compaction under vacuum
Flow front stability
Medium-weight fabrics with consistent tow spacing are preferred.
RTM requires:
Controlled fiber architecture
Dimensional stability under mold closure
Uniform resin distribution
In 2026, many manufacturers are optimizing fabrics specifically for RTM-compatible permeability.
Accurate fiber alignment
Controlled resin content
Often uses UD materials
High-modulus fabrics are commonly selected in aerospace-grade prepregs.
When selecting carbon fiber cloth, evaluate:
Tensile strength
Flexural modulus
Interlaminar shear strength
Fatigue performance
Impact resistance
Composite performance depends not only on fiber but also on:
Layup sequence
Fiber orientation
Cure cycle
Consolidation pressure
Therefore, fabric selection must integrate with laminate design.
More factories are adopting automated layup and closed molding systems.
This requires:
Stable fabric geometry
Consistent roll width
Controlled areal weight tolerance
Wind energy and marine industries demand wide-width fabrics to reduce seams.
Infrastructure reinforcement and industrial FRP poles are increasing demand for high-GSM UD carbon fabrics.
Recycled carbon fiber is emerging but remains niche in structural applications.
Before placing a bulk order in 2026, confirm:
✓ Fiber grade and mechanical data
✓ Tow size and weave pattern
✓ GSM tolerance range
✓ Resin compatibility
✓ Permeability performance
✓ Batch consistency
✓ Supplier technical support
The best carbon fiber cloth in 2026 is determined by engineering logic — not marketing claims.
A proper selection balances:
Mechanical requirements
Manufacturing process
Cost efficiency
Long-term supply reliability
By aligning material properties with structural design and process technology, manufacturers can achieve:
Higher production stability
Reduced defects
Optimized cost-performance
Sustainable competitive advantage
