If you are designing, engineering, or manufacturing a product that requires high strength, corrosion resistance, lightweight construction, design flexibility, and long-term durability, you will inevitably consider Fiberglass Reinforced Plastic (FRP)—one of the most versatile composite materials used in modern industries.
From transportation and industrial equipment to RV panels, marine components, chemical tanks, architectural surfaces, and infrastructure elements, FRP has become the preferred alternative to steel, aluminum, and wood in thousands of applications.
To understand FRP, you must understand how its ingredients work together.
Fiberglass is the structural core of FRP. Common formats include:
Woven roving – balanced strength in two directions
Unidirectional (UD) fabric – maximum strength in a single direction
Multiaxial fabric – 0°/90°/±45° engineering for advanced performance
Chopped strand mat – isotropic surface support
Key fiberglass characteristics:
High tensile strength
High stiffness
Excellent fatigue resistance
Impact energy absorption
Non-conductive behavior
Dimensionally stable under temperature changes
Fiberglass is the reason FRP can replace steel in many structural applications.
Resin binds the fiberglass together, determines the part’s durability, and protects it from environmental attack.
Common resins include:
Most widely used
Cost-effective
Good general-purpose performance
Excellent chemical resistance
High corrosion performance
Improved strength vs. polyester
Highest structural performance
Best adhesion
Used in aerospace, wind blades, and high-end structural FRP
The resin you choose will determine the FRP panel’s long-term behavior.
Modern FRP often includes engineered surface layers:
Color film (like RomeoRIM’s ColorMat®)
Gel coats for glossy surfaces
Fire retardants (FR)
UV stabilizers for outdoor applications
Anti-scratch layers
Thermal or sound insulation layers
Surface engineering is one reason FRP can directly replace painted or coated metal panels.
FRP has several performance advantages you cannot get from metal or wood.
FRP offers:
Up to 75% weight reduction vs. steel
Up to 30% weight reduction vs. aluminum
But its reinforcement-based design gives it exceptional structural performance. This is why FRP is used for:
RV sidewalls
Truck fairings
Automotive body panels
Utility enclosures
Marine hulls
FRP does not rust or corrode.
Compared with steel:
No rusting
No metal degradation
No expensive maintenance
Compared with aluminum:
No pitting corrosion
No galvanic corrosion
This makes FRP ideal for harsh environments—saltwater, chemicals, industrial plants, and outdoor exposure.
FRP is:
Non-conductive
Thermally insulating
RF transparent (radio frequency)
Perfect for:
Electrical utilities
Telecom enclosures
Transformer housings
Equipment covers
High-quality FRP—especially with coatings like ColorMat®—provides:
UV protection
Impact resistance
Thermal stability
Resistance to cracking or warping
This is why it is widely used in RV exterior panels and truck bodies.
FRP can be molded into virtually any:
Size
Shape
Texture
Color
Thickness
Curvature
Companies like RomeoRIM specialize in large, single-piece molded FRP components, eliminating seams, joints, and post-painting operations.

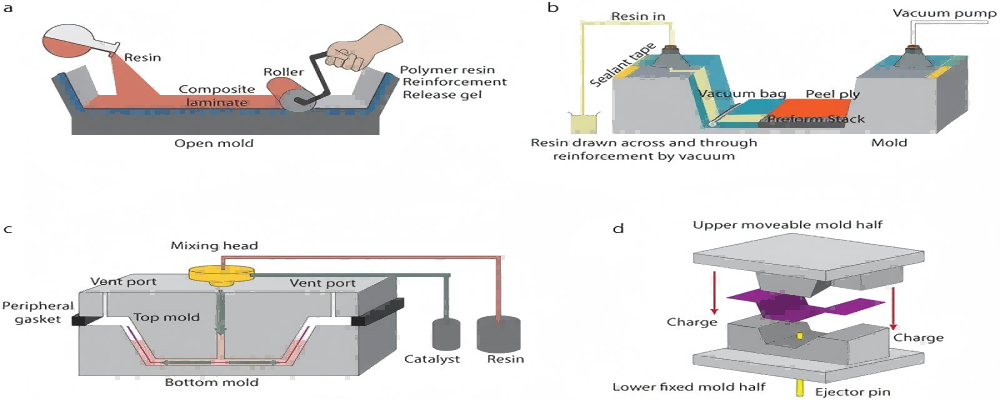

Understanding the manufacturing method helps you choose the right FRP solution.
RTM is a closed-mold process that injects resin into a mold filled with dry fibers.
RomeoRIM uses advanced RTM for large FRP parts, enabling:
Class A surfaces
High repeatability
Excellent structural performance
Low emissions
Smooth cosmetic finishes
Automotive panels
RV roofs & sidewalls
Agricultural machinery covers
Utility enclosures
Uses vacuum to pull resin through the fibers.
Benefits:
Very high fiber content
Lightweight laminates
Improved mechanical properties
Applications:
Boat hulls
Wind turbine blades
Structural panels
Sheet Molding Compound (SMC) and Bulk Molding Compound (BMC) used for mass production.
Applications:
Trucks
Tractors
Heavy equipment
Continuous manufacturing method for FRP profiles.
Produces:
I-beams
Rods
Cable ladders
Flat panels
Fibers wound on a mandrel to create pressure-resistant shapes.
Used for:
FRP pipes
Chemical tanks
Pressure vessels
From the reference link, here are the key FRP technologies RomeoRIM emphasizes:
ColorMat® replaces traditional paint.
Color film is molded directly into the FRP surface.
You get:
Scratch resistance
UV stability
Perfect color uniformity
No painting required
Reduced cost and faster production
Ideal for:
RV panels
Automotive skins
Truck exteriors
Architectural surfaces
Adds 3D textures directly in the mold:
Leather grain
Matte
Gloss
Low-gloss
Custom patterns
This eliminates the need for secondary finishing processes.
RomeoRIM can produce:
Extra-large seamless FRP panels
Complex curved shapes
One-piece exterior skins
Perfect for:
Bus roofs
Agricultural equipment
Construction equipment
RV one-piece sidewalls
RomeoRIM specializes in:
RV exterior walls
Roofs and end caps
Truck panels
Trailer bodies
Automotive parts
These parts benefit from FRP’s strength, UV resistance, and design freedom.
FRP is used almost everywhere.
FRP is ideal for lightweight structural and exterior components:
RV sidewalls & roofing systems
Bus exterior panels
Truck fairings
Tractor & agricultural covers
Electric vehicle body panels
Bumpers and fenders
FRP reduces weight, improves fuel efficiency, and provides corrosion-free longevity.
FRP replaces wood, concrete, and metal in many areas:
Architectural façades
Decorative ceilings
Wall cladding
Structural beams
Reinforced flooring systems
FRP thrives in corrosive and high-moisture environments:
FRP tanks
FRP chemical pipes
Fume ducts
Corrosion-resistant covers
Industrial housings
FRP does not rust, making it perfect for:
Boat hulls
Deck structures
Marine interior elements
FRP is widely used for:
Transformer housings
Telecom enclosures
Electrical crossarms
Utility poles
Its insulating properties offer major safety advantages.
Performance Factor | Steel | Aluminum | FRP |
Weight | Heavy | Medium | Lightest |
Corrosion resistance | Poor | Moderate | Excellent |
Electrical conductivity | Conductive | Conductive | Insulating |
Impact resistance | Good | Medium | High |
Thermal insulation | Poor | Poor | Excellent |
Moldability | Low | Medium | Very high |
UV/weather resistance | Medium | Medium | Excellent |
Maintenance cost | High | Medium | Low |
Lifecycle | Medium | Medium | Long (20–50+ yrs) |
FRP outperforms metal in most categories except heat resistance and extreme structural loads.
To ensure you choose the right FRP product, consider:
You should choose FRP if you need:
Lightweight but strong materials
Corrosion-free performance
Long-term outdoor durability
Electrical or thermal insulation
Custom textures or colors
One-piece large molded panels
A material that reduces long-term costs
FRP is ideal for:
Vehicle body construction
RV and trailer panels
Industrial enclosures
Marine environments
Chemical applications
Architectural façades
Utility and telecom products
With modern FRP technologies—like ColorMat®, Rigidize™, RTM molding, and large-part composite engineering—you get a high-performance material capable of replacing traditional metals with significant advantages.For advanced FRP solutions and tailored composite products, you can rely on our company, Jlon, to meet your project’s specific needs.
