Sheet molded compound refers to a ready-to-mold composite material supplied in sheet form. Unlike traditional hand lay-up fiberglass or prepregs, SMC is engineered for automated compression molding, ensuring high consistency and repeatability.
The material is produced by dispersing chopped glass fibers into a resin paste and forming it into flat sheets that can be cut, stacked, and molded directly.
A typical SMC sheet molding compound consists of multiple functional components working together:
Glass fiber is the primary load-bearing component. In most SMC systems, chopped glass fibers with lengths between 25–50 mm are used.
Functions:
Provide tensile, flexural, and impact strength
Control stiffness and fatigue performance
Improve crack resistance
JLON supplies SMC-grade fiberglass reinforcements designed for:
Good fiber dispersion
Consistent chopping performance
Compatibility with polyester and vinyl ester resin systems
Common resin types include:
Unsaturated polyester resin
Vinyl ester resin
Epoxy resin (special applications)
The resin binds fibers together and transfers load between them.
Fillers such as calcium carbonate (CaCO₃) or ATH are added to:
Reduce material cost
Improve surface smoothness
Enhance fire resistance
Additives may include:
Low profile additives (LPA)
Mold release agents
Pigments and stabilizers

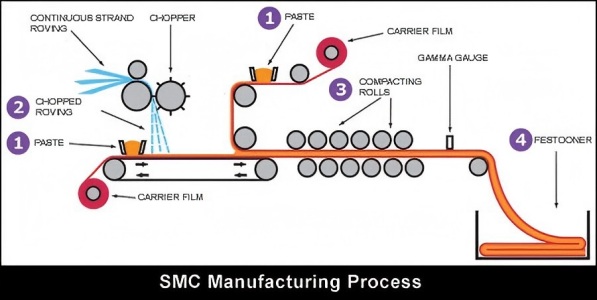

The sheet molding compound process is a controlled, industrialized manufacturing method based on compression molding
Resin paste is applied onto a carrier film
Chopped glass fibers are evenly deposited
A second resin layer is added
The sandwich structure is compacted into a uniform sheet
After production, SMC sheets are stored for several days to allow viscosity to increase.
This step is critical to:
Prevent resin flow-out
Improve mold filling behavior
Ensure surface quality
The matured sheet is:
Cut into specific sizes
Weighed accurately
Stacked according to mold design
The charge is placed into a heated steel mold
The mold closes under high pressure
Typical molding temperature: 130–160°C
Cycle time: 1–5 minutes
The material flows, fills the cavity, and cures simultaneously.
The molded part is removed
Trimming and drilling may be applied
Surface finishing or painting follows if required
Compared with other composite manufacturing methods, the sheet molding compound process offers:
High production efficiency
Excellent surface finish (Class A surfaces achievable)
Tight dimensional tolerances
Low scrap and waste
Integration of ribs, bosses, and inserts
These advantages make SMC sheet molding compound ideal for large-scale industrial production.
Although SMC parts are highly durable, sheet molded compound repair may be required due to impact damage, scratches, or localized cracking.
Automotive body panels
Electrical enclosures
Industrial housings
Clean and degrease the damaged area
Grind or sand to remove damaged laminate
Apply SMC-compatible epoxy or vinyl ester repair compound
Allow proper curing
Sand, prime, and repaint
Important:
Standard polyester body fillers are not recommended, as SMC surfaces often contain mold-release agents that reduce adhesion.
Thanks to its balanced performance and cost efficiency, sheet molding compound is used in a wide range of industries:

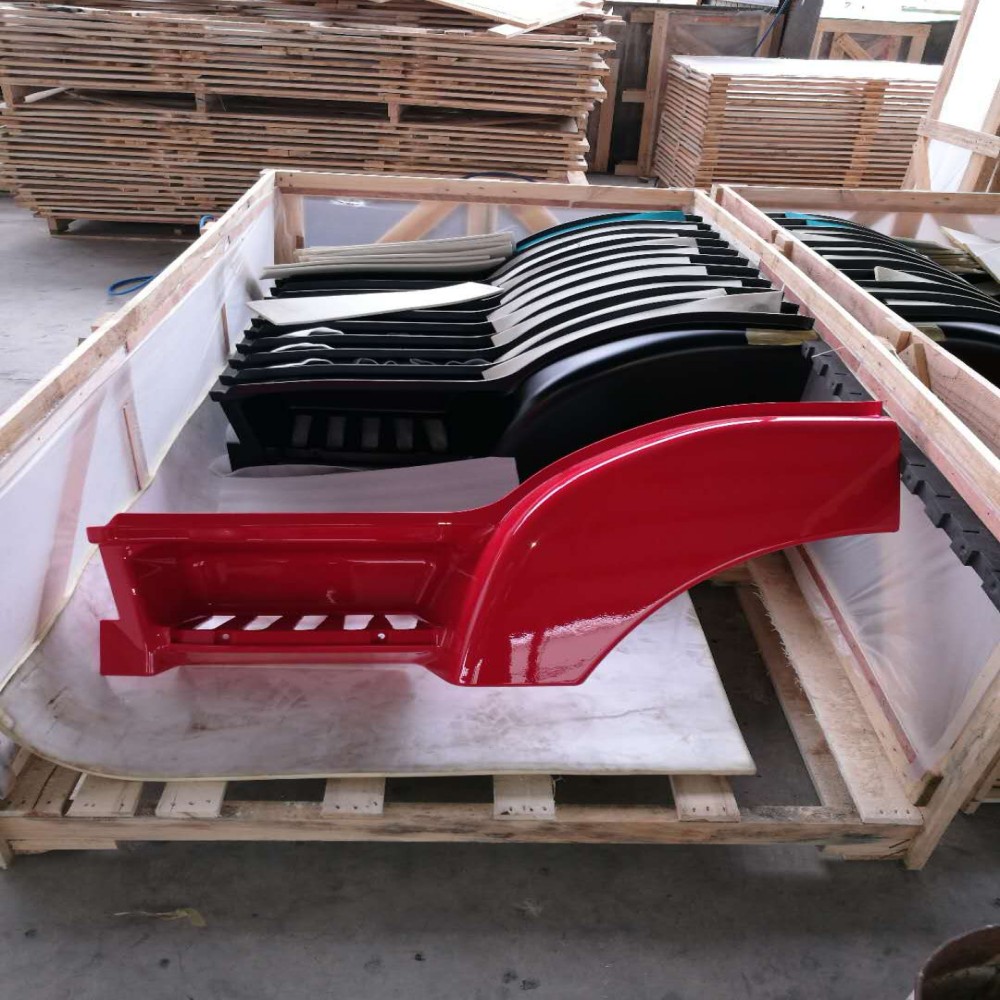

Hoods, roofs, tailgates
Fender panels
Structural reinforcements
Switchgear enclosures
Transformer housings
Meter boxes
Sanitary ware
Wall panels
Utility covers
Nacelle components
Machine covers
Corrosion-resistant structures
Material | Process | Key Difference |
SMC | Compression molding | High-volume, Class A surface |
BMC | Injection/compression | Short fiber, smaller parts |
Hand Lay-Up | Manual | Low cost, low consistency |
RTM | Resin injection | Higher fiber control, longer cycle |
This comparison shows why SMC sheet molding compound is often selected for mass production.
JLON specializes in fiberglass reinforcement materials for composite manufacturing, including applications related to sheet molding compound process development.
To summarize, sheet molding compound (SMC) is a mature, efficient, and versatile composite solution that combines:
High strength
Excellent surface quality
Design flexibility
Cost-effective mass production
From SMC sheet molding compound manufacturing to sheet molded compound repair, SMC continues to play a critical role in modern composite industries.
With professional fiberglass reinforcement support from JLON, manufacturers can confidently develop high-quality SMC products for demanding applications.
