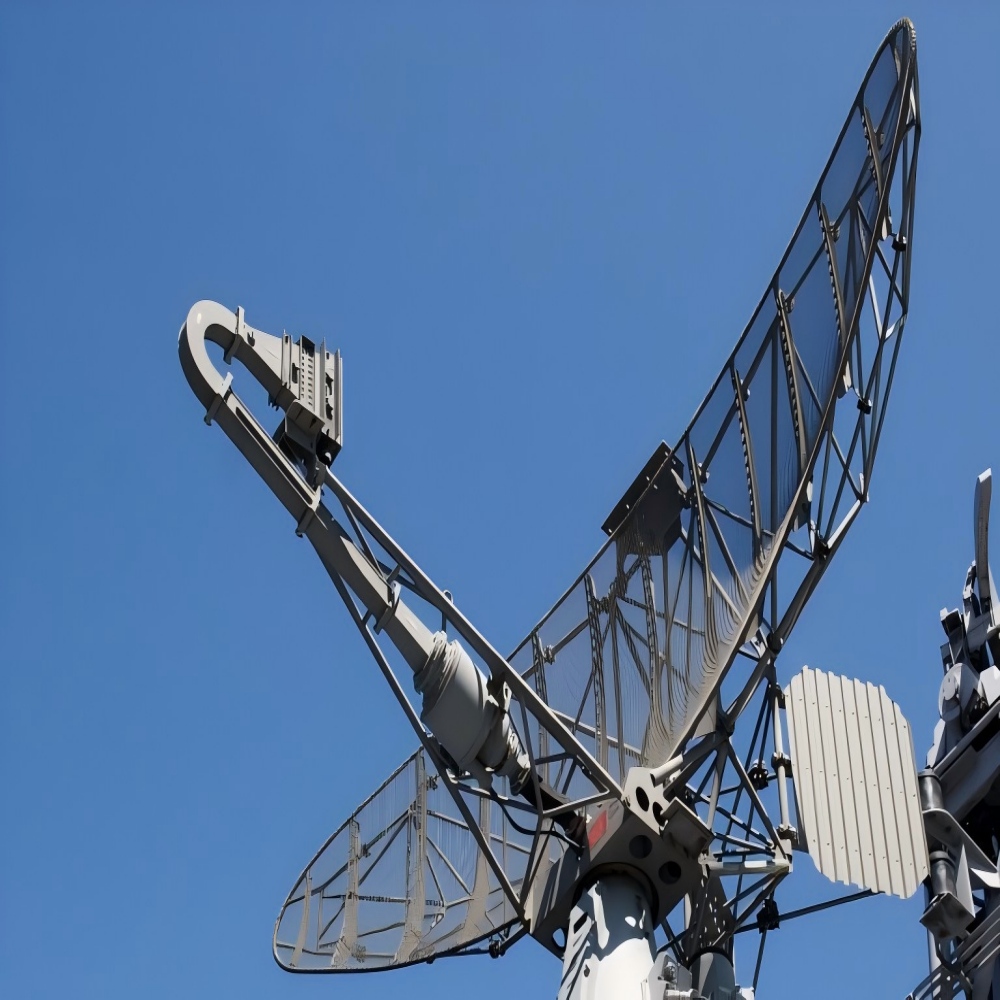

The rapid development of wireless communication, radar systems, satellite technology, autonomous vehicles, and aerospace electronics has significantly increased the demand for advanced RF-transparent materials.

Modern antenna systems must operate at increasingly higher frequencies while maintaining excellent signal integrity, structural stability, and environmental durability. Engineers are constantly seeking materials that can provide minimal electromagnetic interference without sacrificing mechanical performance.

Among the various structural foam cores available today, PMI foam (Polymethacrylimide Foam) has become one of the most widely used materials for RF and antenna applications. Thanks to its low dielectric constant, low dielectric loss, lightweight structure, and exceptional mechanical properties, PMI foam is frequently selected for radomes, satellite antennas, phased-array radar systems, and other high-frequency communication structures.

This article explains why PMI foam has become a preferred solution for RF-transparent sandwich structures and how it helps engineers achieve both electromagnetic and structural performance requirements.

Understanding RF and Antenna Material Requirements

Unlike conventional structural composites, RF components must satisfy two distinct requirements simultaneously:

1. Mechanical performance

2. Electromagnetic transparency

A material may possess excellent strength and stiffness but still be unsuitable for antenna systems if it negatively affects electromagnetic wave transmission.

For this reason, antenna and radome designers carefully evaluate material properties such as:

· Dielectric constant (Dk)

· Dielectric loss tangent (Df)

· Moisture absorption

· Thermal stability

· Dimensional stability

· Density

· Compressive strength

· Shear strength

As frequencies move into microwave and millimeter-wave ranges, even small variations in material properties can significantly affect system performance.

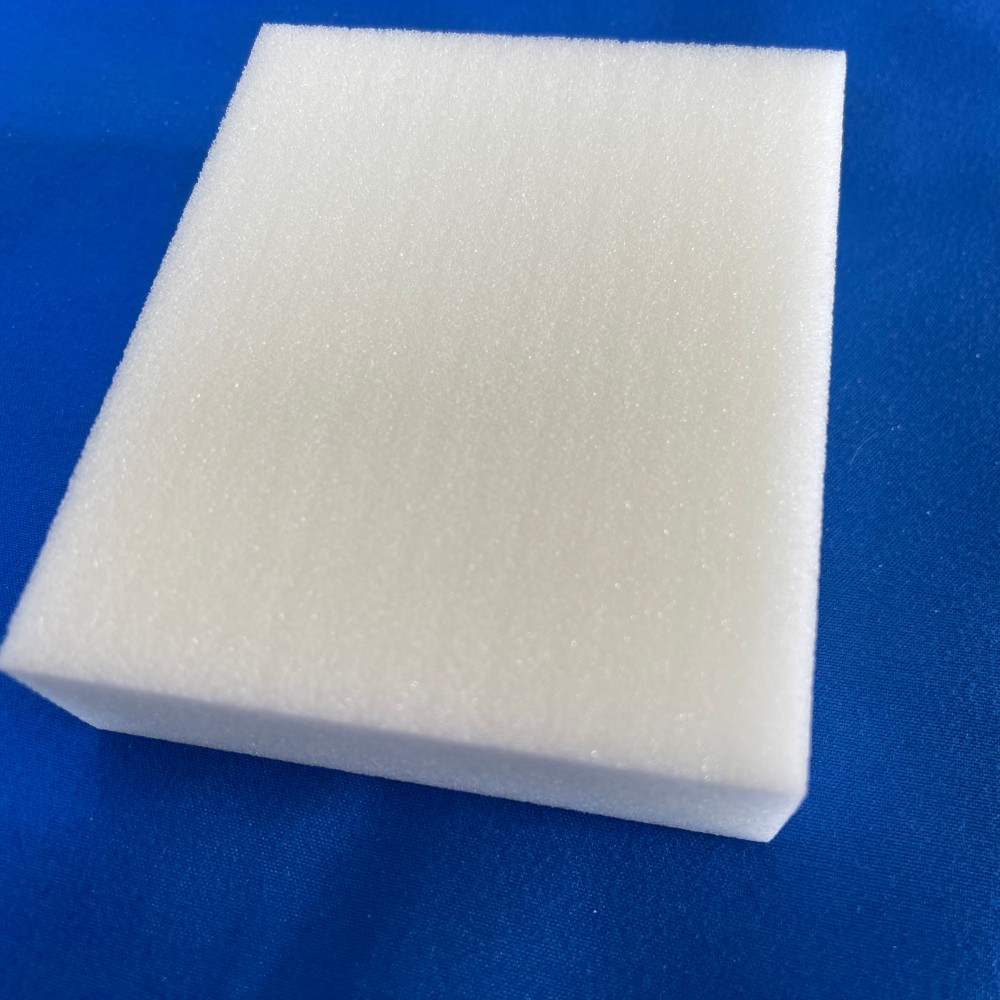

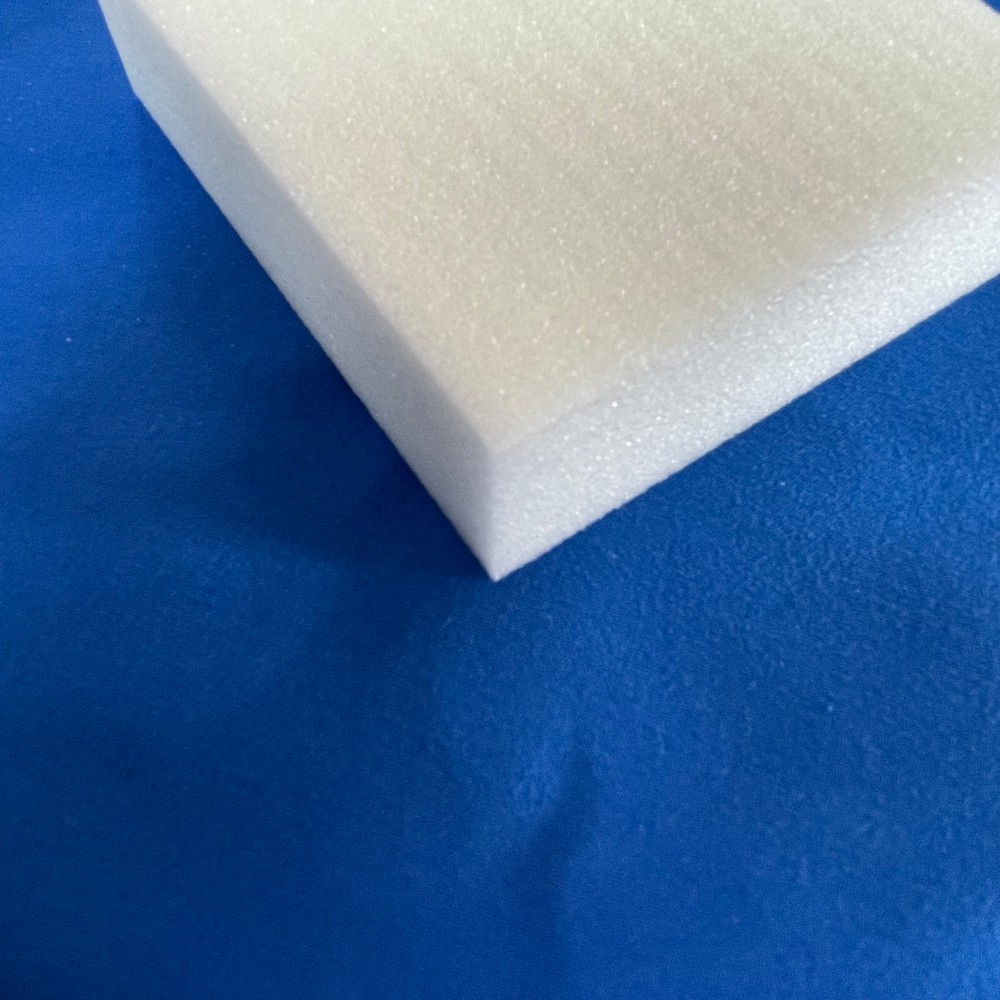

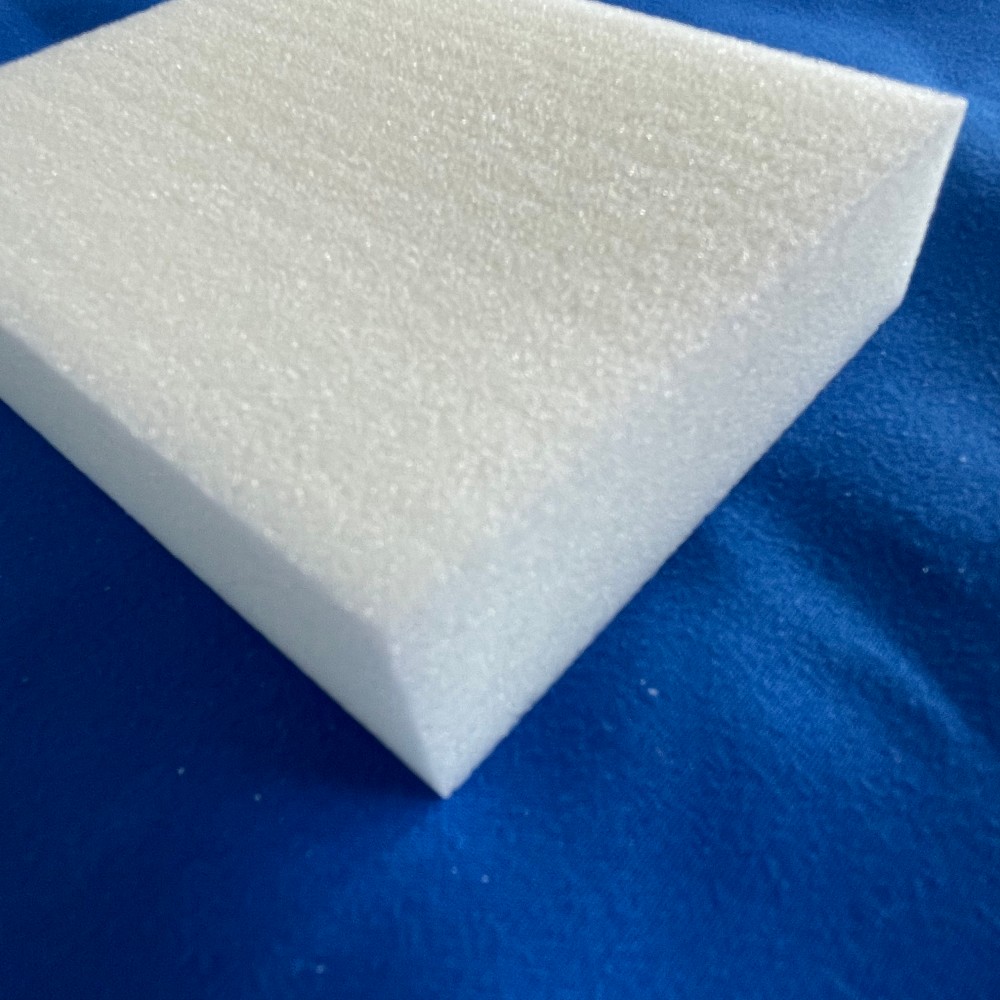

What Is PMI Foam?

PMI foam, short for Polymethacrylimide foam, is a rigid closed-cell structural foam developed specifically for high-performance sandwich composite structures.

The material was originally introduced for aerospace applications where engineers required an ultra-lightweight core material capable of maintaining high strength and dimensional stability under demanding conditions.

Today, PMI foam is used in:

· Aerospace structures

· Radomes

· Satellite communication systems

· UAV components

· Motorsport composites

· Medical equipment

· High-performance industrial composites

Its unique cellular structure combines low density with outstanding mechanical properties, making it one of the most advanced structural foam cores available.

Why PMI Foam Is Ideal for RF Applications

Low Dielectric Constant

One of the most important characteristics of PMI foam is its low dielectric constant.

The dielectric constant measures how much a material influences electromagnetic waves traveling through it.

Materials with dielectric constants close to air allow radio waves to pass with minimal distortion.

Typical PMI foam exhibits a dielectric constant ranging approximately from:

· 1.05 to 1.20

depending on density and frequency.

Benefits include:

· Reduced signal distortion

· Improved transmission efficiency

· Better antenna performance

· Enhanced radar accuracy

· Lower phase shift

For engineers designing high-frequency systems, maintaining signal fidelity is critical, making low dielectric materials highly desirable.

Low Dielectric Loss

In addition to dielectric constant, dielectric loss tangent is equally important.

Dielectric loss indicates how much electromagnetic energy is converted into heat as waves travel through a material.

PMI foam typically exhibits extremely low dielectric loss, allowing more energy to reach its intended destination.

Advantages include:

· Higher signal efficiency

· Longer transmission range

· Reduced power loss

· Improved communication reliability

These benefits become increasingly important in applications operating at microwave and millimeter-wave frequencies.

Exceptional Strength-to-Weight Ratio

Modern aerospace and communication systems demand lightweight structures without compromising strength.

PMI foam provides:

· Very low density

· High compressive strength

· Excellent shear strength

· Outstanding stiffness-to-weight ratio

When combined with composite skins such as:

· Carbon fiber

· Fiberglass

· Quartz fiber

· Aramid fiber

PMI foam forms highly efficient sandwich structures capable of supporting substantial loads while remaining lightweight.

This combination is particularly valuable in airborne and spaceborne systems where every kilogram matters.

Superior Dimensional Stability

Maintaining antenna geometry is essential for accurate signal transmission and reception.

Even minor deformations can negatively affect:

· Beam accuracy

· Signal quality

· Radar performance

· Communication reliability

PMI foam offers excellent dimensional stability due to:

· High modulus

· Low creep

· Low thermal expansion

These characteristics help preserve structural accuracy throughout the product lifecycle.

Excellent Thermal Resistance

Many RF systems operate under harsh environmental conditions.

Applications may experience:

· High solar radiation

· Extreme temperature fluctuations

· High-altitude conditions

· Aerospace environments

PMI foam exhibits excellent thermal stability and can withstand elevated processing and service temperatures compared with many conventional foam cores.

This enables consistent performance under demanding operating conditions.

PMI Foam in Radome Applications

What Is a Radome?

A radome is a protective enclosure that surrounds radar or antenna equipment while allowing electromagnetic waves to pass through with minimal interference.

The word "radome" is derived from:

Radar + Dome

Radomes serve two critical functions:

1. Environmental protection

2. RF transparency

A poorly designed radome can significantly reduce antenna performance.

Why PMI Foam Is Used in Radomes

Radome designers require materials that offer:

· Low dielectric constant

· Low dielectric loss

· High stiffness

· Lightweight construction

· Long-term durability

PMI foam satisfies all these requirements simultaneously.

Typical aerospace radome construction includes:

Quartz Fiber Skin + PMI Foam Core + Quartz Fiber Skin

This sandwich structure combines:

· RF transparency

· Structural integrity

· Impact resistance

· Environmental protection

As a result, PMI foam is widely used in military, commercial, and weather radar systems.

PMI Foam for Satellite Communication Systems

Satellite communication antennas require extremely precise geometries.

Even small dimensional deviations may cause:

· Signal degradation

· Reduced gain

· Communication errors

PMI foam provides:

· Lightweight support structures

· Excellent dimensional accuracy

· Thermal stability

· Low dielectric interference

Applications include:

· Ground station antennas

· Satellite dishes

· Aerospace communication systems

· Spaceborne antenna structures

Because weight reduction is a primary objective in aerospace engineering, PMI foam's low density provides a significant advantage.

PMI Foam in Phased-Array Radar Systems

Phased-array antennas are among the most advanced RF systems in use today.

They are widely employed in:

· Military radar

· Aerospace surveillance

· Air traffic control

· Weather monitoring

· Advanced communications

These systems rely on precise signal timing and phase relationships.

Materials with poor dielectric properties can introduce phase errors and reduce overall performance.

PMI foam helps minimize these issues by providing a stable, low-loss dielectric environment.

PMI Foam for 5G and Next-Generation Telecommunications

The rollout of 5G networks and future communication technologies is driving demand for advanced RF materials.

Higher frequencies require materials that exhibit:

· Minimal signal attenuation

· Stable dielectric behavior

· Long-term environmental resistance

PMI foam is increasingly considered for:

· Antenna enclosures

· Communication housings

· Microwave transmission systems

· High-frequency wireless infrastructure

Its combination of RF transparency and structural performance makes it well suited for next-generation communication platforms.

PMI Foam vs PVC Foam for RF Applications

Many engineers compare PMI foam with PVC foam when evaluating composite core materials.

Property	PMI Foam	PVC Foam
Dielectric Performance	Excellent	Moderate
Signal Loss	Very Low	Higher
Temperature Resistance	Excellent	Moderate
Structural Performance	Excellent	Good
Aerospace Usage	Extensive	Limited
Radome Applications	Common	Limited

While PVC foam remains cost-effective for general composites, PMI foam is often selected when RF performance is critical.

PMI Foam vs PET Foam

PET foam has gained popularity due to its recyclability and affordability.

However, RF applications often demand superior dielectric and mechanical performance.

Compared with PET foam, PMI foam generally provides:

· Better high-temperature resistance

· Higher stiffness

· Greater dimensional stability

· Improved aerospace suitability

For demanding antenna and radome projects, these advantages can justify the higher material cost.

Manufacturing Processes Compatible with PMI Foam

PMI foam can be integrated into various composite manufacturing processes, including:

Vacuum Infusion

Widely used for large composite structures.

Benefits include:

· Lower tooling costs

· Consistent resin distribution

· High-quality laminates

Resin Transfer Molding (RTM)

Suitable for high-volume production.

Advantages include:

· Excellent repeatability

· Reduced cycle times

· Good surface quality

Prepreg Autoclave Processing

Common in aerospace applications.

Provides:

· Maximum laminate quality

· Superior fiber consolidation

· High structural performance

CNC Machining

PMI foam can be precisely machined into complex shapes required for advanced RF structures.

This capability supports customized antenna and radome designs.

Design Considerations When Selecting PMI Foam

Engineers should evaluate several factors before selecting a foam grade:

Operating Frequency

Higher frequencies typically require tighter control of dielectric properties.

Mechanical Loads

Compression and shear loads influence density selection.

Environmental Conditions

Temperature and humidity exposure must be considered.

Manufacturing Process

Different processes may favor specific density grades.

Weight Requirements

Aerospace and UAV applications often prioritize weight reduction.

Selecting the appropriate PMI foam density ensures optimal balance between RF performance and structural capability.

Future Trends in RF Composite Materials

As communication technologies continue advancing, demand for RF-transparent composite materials will continue to grow.

Emerging applications include:

· 6G communication systems

· Autonomous vehicle radar

· Advanced aerospace electronics

· Satellite internet networks

· Space exploration systems

PMI foam is expected to remain a key material in these sectors due to its unique combination of dielectric and mechanical properties.

Conclusion

PMI foam has established itself as one of the most effective core materials for RF-transparent sandwich structures. Its low dielectric constant, low dielectric loss, lightweight construction, thermal stability, and superior mechanical performance make it an ideal choice for radomes, satellite communication systems, phased-array antennas, and next-generation telecommunications infrastructure.

For engineers seeking a balance between electromagnetic transparency and structural strength, PMI foam continues to be one of the most trusted solutions available for advanced RF and antenna applications.

Frequently Asked Questions

What is PMI foam used for in RF applications?

PMI foam is commonly used as a structural core material in radomes, satellite antennas, phased-array radar systems, and communication structures requiring low dielectric properties.

Is PMI foam RF transparent?

Yes. PMI foam exhibits a low dielectric constant and low dielectric loss, allowing electromagnetic waves to pass through with minimal interference.

Why is PMI foam preferred for radomes?

PMI foam combines RF transparency, lightweight construction, high stiffness, and environmental durability, making it highly suitable for radome sandwich structures.

Can PMI foam be used with carbon fiber composites?

Yes. PMI foam is frequently bonded with carbon fiber, fiberglass, quartz fiber, and aramid fiber skins to create high-performance sandwich panels.

Is PMI foam suitable for aerospace communication systems?

Absolutely. PMI foam has been widely used in aerospace and satellite communication applications where weight reduction and dimensional stability are critical.
