Before comparing 4 oz and 6 oz fiberglass fabric, it is essential to understand what the “oz” measurement represents in marine and board-building industries. Fiberglass cloth ounce weight refers to the fabric weight per square yard, a universal standard for surfboard and SUP lamination materials. The higher the ounce rating, the thicker, denser, and stronger the fiberglass cloth will be.
Standard E-glass fiberglass cloth, the primary material for SUP construction, follows fixed weight-to-thickness conversions. A 4 oz fiberglass cloth equals approximately 140gsm, featuring a thin, tight plain weave with excellent flexibility. A 6 oz fiberglass cloth measures around 200gsm, offering a thicker, more robust weave with enhanced structural rigidity. Both weights are compatible with epoxy resin systems—the industry standard for modern SUP boards—while also working with polyester and vinyl ester resins for traditional repairs.
The ounce weight directly determines three key factors for SUP performance: board weight, flex characteristics, and impact resistance. Lighter fabric preserves maneuverability and speed, while heavier fabric boosts durability and load-bearing capacity. This fundamental tradeoff is why 4 oz and 6 oz remain the two most popular fiberglass weights for all types of stand-up paddle boards, from lightweight race SUPs to heavy-duty fishing SUPs.
The gap between 4 oz and 6 oz fiberglass cloth goes far beyond thickness. Every property, from conformability and resin usage to finished board rigidity, changes significantly between the two weights. Below are the key differences tailored exclusively to SUP construction and repair needs.

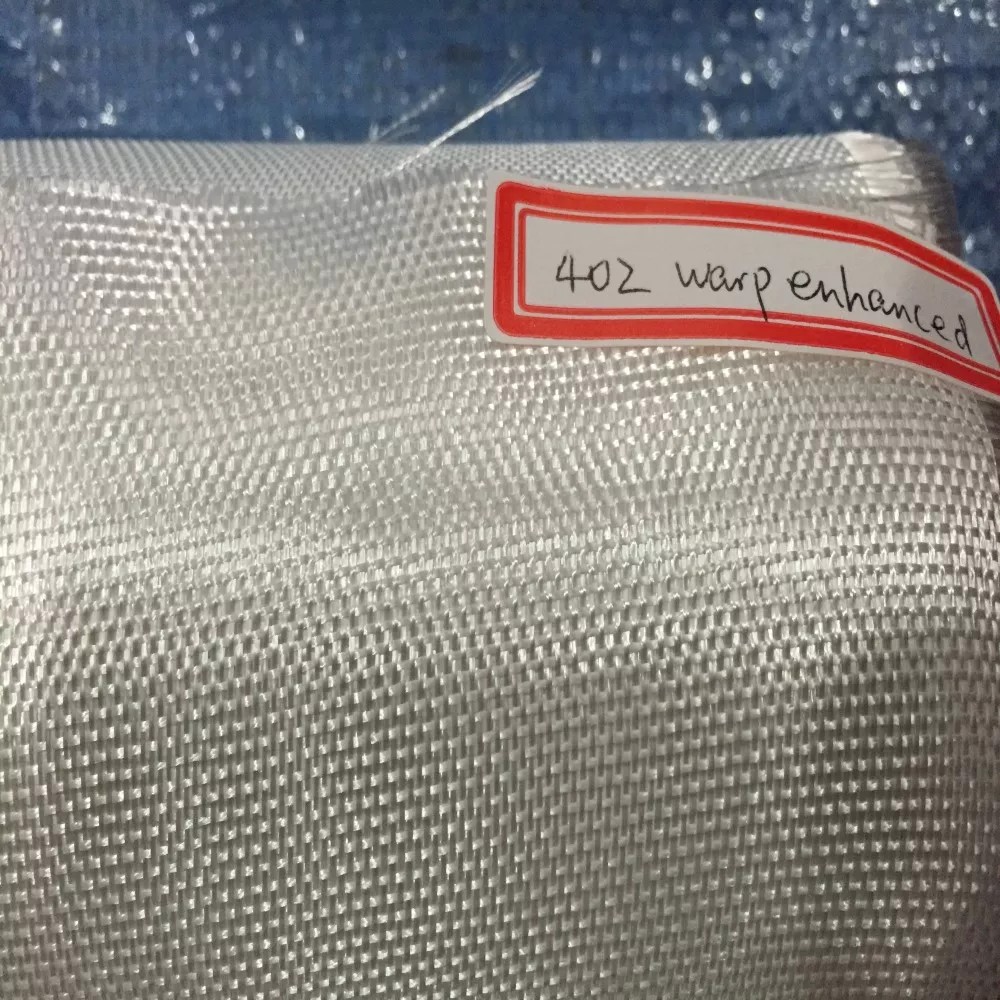

4 oz fiberglass cloth is exceptionally thin and pliable, making it the best choice for complex SUP contours and tight curves. It wets out smoothly with epoxy resin, stretches evenly over curved deck surfaces, rounded board rails, and intricate cutouts without bunching, wrinkling, or creating dry spots. For custom-shaped SUPs with unique hull designs, 4 oz fabric eliminates lamination flaws that can compromise structural integrity.

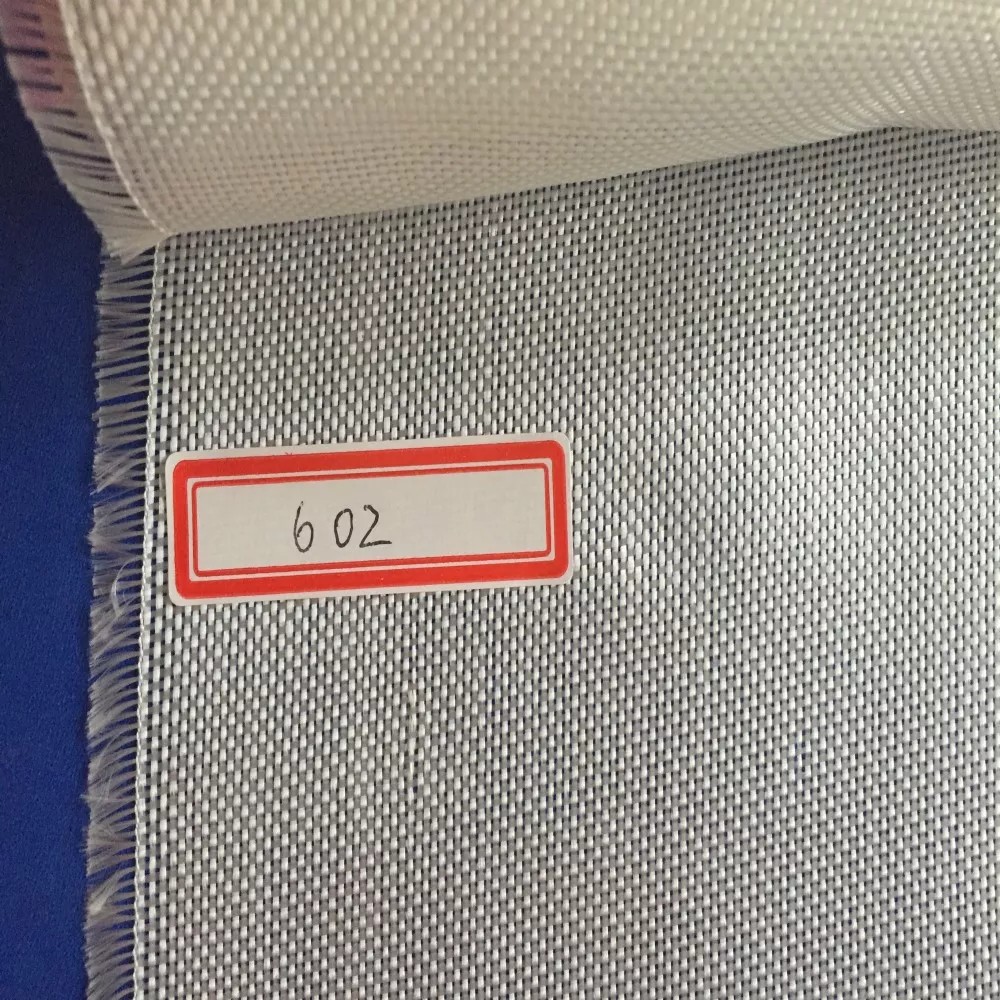

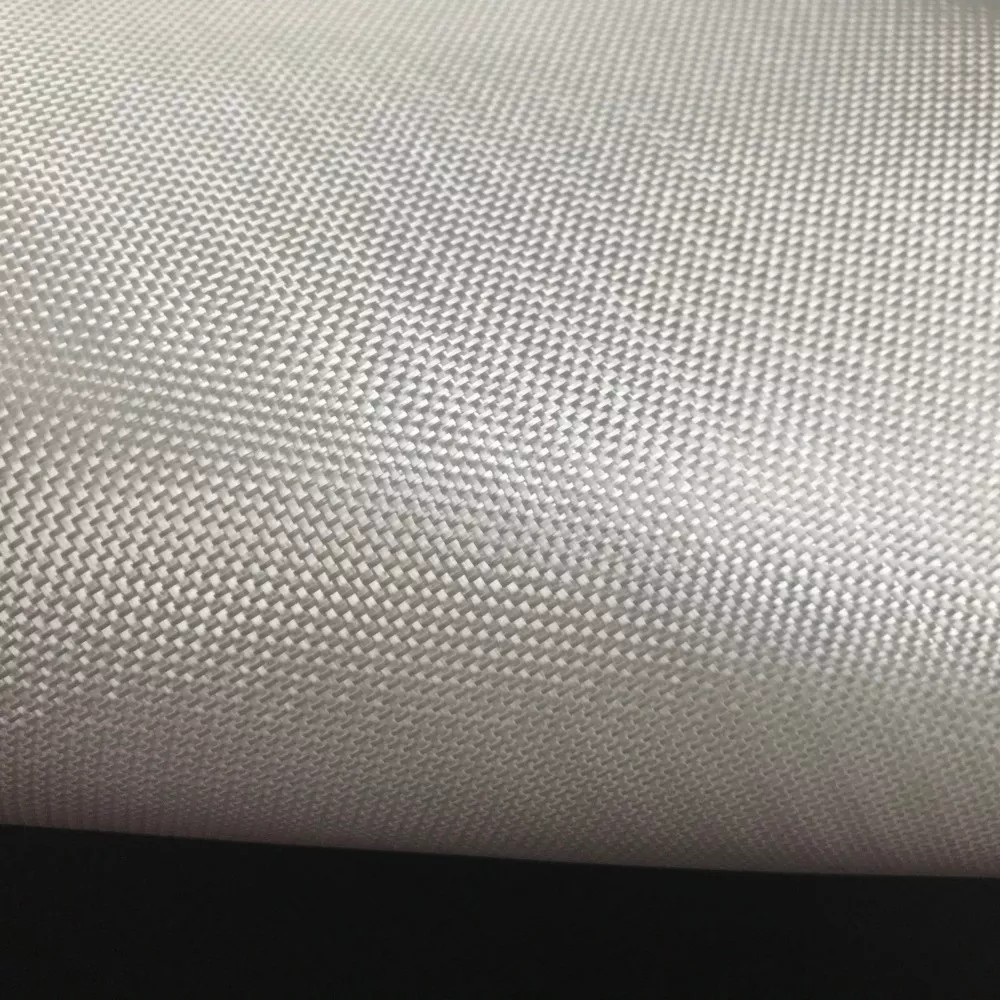

6 oz fiberglass cloth is thicker and stiffer, offering far less flexibility. While it still conforms to standard SUP shapes, it struggles with tight radii and complex curves. Inexperienced builders often encounter wrinkles or uneven layup when using 6 oz fabric on highly contoured board surfaces. Its rigidity is a strength for structural reinforcement but a limitation for detailed, cosmetic surface lamination.
6 oz fiberglass cloth delivers substantially higher tensile strength, impact resistance, and abrasion resistance compared to 4 oz fabric. It is far more effective at resisting dents, cracks, and punctures caused by floating debris, rocky shorelines, equipment impacts, and repeated foot traffic. For high-stress SUP areas including board rails, fin boxes, foot pad mounting zones, and cargo mounting points, 6 oz cloth provides reliable structural support.
4 oz fiberglass cloth offers adequate strength for low-stress surface layers and cosmetic lamination but lacks the rigid structural stability of 6 oz fabric. It is prone to minor denting under heavy loads or sharp impacts, which is why it is rarely used alone for full structural layups on heavy-use SUP boards.
Weight is the most critical performance factor for competitive and recreational SUP users. Boards laminated primarily with 4 oz fiberglass cloth are significantly lighter, featuring faster acceleration, better glide, and easier maneuverability on flat water and small waves. Lightweight SUPs reduce rider fatigue during long paddling sessions, making them ideal for touring, racing, and casual recreational use.
6 oz fiberglass adds noticeable weight to the finished board. While this reduces raw speed and agility, the extra mass creates a more stable platform. Heavier SUPs built with 6 oz fiberglass resist wind and water chop better, making them perfect for open-water paddling, fishing, and carrying heavy gear loads.
Heavier fiberglass cloth absorbs more epoxy resin, directly increasing material costs and curing time. A 6 oz layup requires approximately 30–40% more resin than an equivalent 4 oz layup, increasing overall project expenses. Additionally, thicker 6 oz fabric takes longer to fully wet out, requiring more careful rolling and smoothing to avoid resin-rich or dry areas.
4 oz fiberglass cloth is beginner-friendly, wets out quickly and evenly, and requires minimal resin. It cures faster and produces a smoother, clearer finish with fewer visible weave patterns, making it perfect for top cosmetic layers and quick, clean repairs.
SUP boards built with 6 oz fiberglass laminations have superior long-term durability. The denser weave resists UV degradation wear, surface scuffs, and structural fatigue better than 4 oz fabric. For commercial rental SUPs, family shared boards, and fishing paddle boards that endure daily heavy use, 6 oz cloth extends the board’s service life significantly.
4 oz fiberglass laminations excel in lightweight performance but show wear faster with heavy use. Surface scratches and minor abrasions appear more easily, and repeated stress can cause gradual flex fatigue over years of use.
4 oz fiberglass cloth is the gold standard for lightweight, performance-focused SUP builds and precision repairs. Its unique combination of low weight, excellent conformability, and smooth cosmetic finish makes it indispensable for the following SUP projects.
3.1 Racing and touring SUP boards Competitive paddle boarders prioritize lightweight construction to maximize speed and efficiency, so full or partial 4 oz layups on deck and hull surfaces deliver optimal glide and maneuverability without unnecessary weight gain. Long-distance touring SUPs also benefit from 4 oz lamination, as reduced board weight minimizes paddling fatigue during extended trips.
3.2 Cosmetic top layers and fine finishing The thin, tight plain weave of 4 oz fiberglass creates a crystal-clear resin finish with minimal texture, enhancing the board’s aesthetic appeal while providing a smooth, grippy surface for foot pads and paint finishes. Most professional builders use 4 oz cloth as the final outer layer for all custom SUPs, regardless of the structural core layup.
3.3 Small and precise SUP repairs Minor cracks, surface chips, and small delaminations require flexible, lightweight fabric that matches the original board’s flex pattern. Using 4 oz cloth for spot repairs preserves the board’s original performance and avoids creating stiff, uneven repair zones that can cause new stress cracks.
3.4 Curved and complex surface lamination Any contoured hull sections, rounded rail edges, or custom cutout areas are far easier to laminate cleanly with flexible 4 oz fabric, eliminating wrinkling and lamination defects.
6 oz fiberglass cloth is the go-to material for structural reinforcement, heavy-duty builds, and high-stress SUP applications. Its enhanced strength and rigidity make it essential for durable, load-bearing paddle board construction.
4.1 Fishing SUPs and heavy-duty utility boards Fishing SUPs carry heavy gear, rod holders, coolers, and standing anglers, creating constant high stress on the board’s structure. 6 oz lamination prevents flex, sagging, and structural damage under heavy loads, delivering a stable, rigid platform for fishing activities.
4.2 High-stress zone reinforcement Board rails, fin boxes, mounting hardware points, and tail sections endure the most impacts and pressure during use. Laminating these areas with 6 oz fiberglass adds critical structural support, preventing rail dents, fin box loosening, and impact cracks that are common with 4 oz-only layups.
4.3 Rental and commercial SUP boards These boards face constant abuse from different riders, collisions, and rough water conditions. The thick, abrasion-resistant 6 oz weave withstands heavy daily use, reduces repair frequency, and lowers long-term maintenance costs for rental businesses.
4.4 Large-scale structural SUP repairs Major hull cracks, full rail damage, and large delaminated sections require the structural strength of 6 oz fiberglass to restore the board’s original rigidity and load capacity. Lightweight 4 oz cloth cannot provide sufficient structural support for extensive structural repairs.
The best custom SUP builds rarely use only 4 oz or 6 oz fiberglass exclusively. Professional board builders rely on a hybrid layup strategy that combines the strengths of both weights to achieve perfect balance between lightweight performance and structural durability. This mixed layup is the industry standard for high-quality custom and factory SUPs.
5.1 Standard all-purpose SUP layup 6 oz structural base layers + 4 oz cosmetic top layers. Builders apply one or two layers of 6 oz fiberglass on the hull and high-stress rail zones to build rigid structural strength and impact resistance. Then, a final layer of 4 oz cloth is added over the entire board to create a smooth, lightweight, clear cosmetic finish. This combination delivers a strong, durable board without the excessive weight of full 6 oz lamination or the fragility of full 4 oz lamination.
5.2 Ultra-light race SUP layup Full 4 oz deck and hull lamination with targeted 6 oz reinforcement only on rails and fin boxes. This preserves maximum speed and agility while protecting the board’s most vulnerable areas from damage.
5.3 Heavy-duty fishing & utility SUP layup Dual 6 oz base layers with a single 4 oz top finish layer. This maximizes structural rigidity and load capacity while still delivering a clean, smooth surface finish.
6.1 Can I mix 4 oz and 6 oz fiberglass cloth on the same SUP board? Yes, mixing 4 oz and 6 oz fiberglass is the most professional and cost-effective layup method for nearly all SUP builds. Combining 6 oz structural reinforcement with 4 oz cosmetic finishing creates a perfectly balanced board with optimal strength, weight, and appearance.
6.2 Does 6 oz fiberglass make a SUP board significantly heavier? A full 6 oz lamination adds approximately 15–25% more weight compared to a full 4 oz lamination. While this reduces top speed slightly, it greatly improves stability and durability, making it worthwhile for utility and fishing-focused SUPs.
6.3 Is 4 oz fiberglass strong enough for a beginner DIY SUP build? 4 oz fiberglass is strong enough for lightweight recreational beginner SUPs. However, beginners should add 6 oz reinforcement on rails and hardware zones to prevent early damage, as amateur lamination often has minor inconsistencies that reduce overall structural strength.
6.4 Which fiberglass cloth consumes more epoxy resin? 6 oz fiberglass cloth consumes 30–40% more epoxy resin than 4 oz cloth due to its denser weave and higher fiber volume. This increases both material costs and curing time for 6 oz layups.
Choosing between 4 oz vs 6 oz fiberglass cloth for SUP paddle boards ultimately depends on your board’s intended use. If you are building a lightweight racing, touring, or casual recreational SUP, or working on cosmetic finishes and small repairs, 4 oz fiberglass cloth is the ideal choice for its low weight, smooth finish, and excellent conformability.
If you are constructing a fishing SUP, commercial rental board, heavy utility paddle board, or reinforcing high-stress impact zones, 6 oz fiberglass cloth delivers the superior strength, rigidity, and durability required for long-term heavy use. For professional, high-quality results, always use a hybrid layup combining both weights to balance performance, strength, and aesthetics.
