Polyvinyl Chloride (PVC) foam core is a closed-cell structural foam specifically designed for composite sandwich construction. Unlike rigid PVC boards used in construction or advertising, PVC foam core is engineered to work as the lightweight inner layer between two composite skins made of fiberglass, carbon fiber, or other reinforced laminates.
The sandwich construction principle allows engineers to dramatically increase bending stiffness while minimizing overall weight. Instead of increasing laminate thickness with additional fiberglass or carbon fiber, a lightweight foam core separates the skins, significantly improving structural efficiency.
Cross-linked PVC foam is widely recognized for its excellent balance of strength, weight, durability, and processing versatility, making it one of the industry's most popular structural core materials.
Composite sandwich panels require a core material capable of transferring shear loads while maintaining dimensional stability under mechanical and environmental stresses. PVC foam core performs exceptionally well in these demanding conditions.
Key advantages include:
Outstanding stiffness-to-weight ratio
Excellent compression and shear strength
Closed-cell structure with extremely low water absorption
High fatigue resistance under cyclic loading
Good impact resistance
Excellent chemical and corrosion resistance
Stable mechanical performance over a wide temperature range
Easy machining using CNC routers and conventional cutting tools
Compatible with most thermoset resin systems
Long service life in harsh marine and outdoor environments
Because of these characteristics, PVC foam core helps manufacturers produce lighter, stronger, and more durable composite components while reducing material consumption and improving production efficiency.
The performance of PVC foam core depends on density, cell structure, and manufacturing quality. High-quality closed-cell PVC foam provides consistent mechanical performance while maintaining low weight.
Property | Typical Performance |
Density | 45–300 kg/m³ |
Cell Structure | Closed-cell |
Water Absorption | Very low |
Compression Strength | High |
Shear Strength | High |
Fatigue Resistance | Excellent |
Chemical Resistance | Excellent |
Thermal Insulation | Good |
Dimensional Stability | Excellent |
Processing Compatibility | Hand Lay-up, Vacuum Infusion, RTM, Prepreg, Compression Molding |
The closed-cell structure minimizes resin absorption during infusion and prevents water ingress, making PVC foam particularly suitable for marine applications where moisture resistance is essential.
A sandwich composite typically consists of three layers:
Outer composite skin
Lightweight foam core
Inner composite skin
Although the foam core contributes relatively little weight, it significantly increases the distance between the two load-bearing skins. This increases the section modulus and greatly improves bending stiffness while keeping the structure lightweight.
Compared with solid laminate construction, sandwich panels using PVC foam core offer:
Up to 50–70% weight reduction
Higher stiffness
Improved buckling resistance
Better impact performance
Reduced material consumption
Lower transportation costs
Improved energy efficiency
These advantages explain why sandwich composites are widely used in industries where weight reduction directly affects performance and operating costs.
Selecting the correct density is critical for achieving the best balance between strength, stiffness, weight, and cost.
Density | Typical Applications |
45–60 kg/m³ | UAVs, drones, lightweight structures |
60–80 kg/m³ | Wind turbine blades, marine decks |
80–100 kg/m³ | Boat hulls, yacht structures |
100–130 kg/m³ | High-performance marine structures, transportation panels |
130–200 kg/m³ | High-load areas, industrial equipment |
200–300 kg/m³ | Engine foundations, inserts, heavily loaded components |
Lower densities prioritize weight reduction, while higher densities provide improved compressive and shear strength for highly stressed structural areas.
Engineers often combine multiple densities within a single component to optimize both performance and cost.

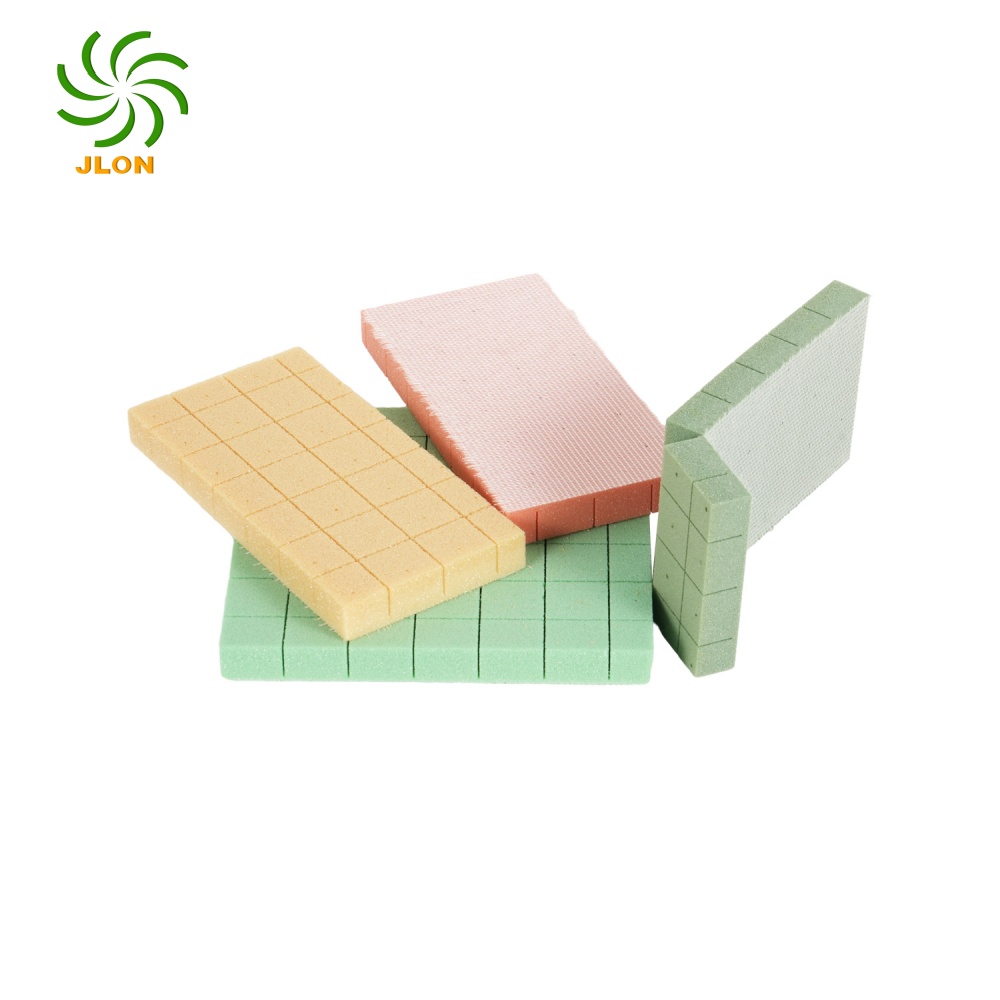

PVC foam core is available in various surface configurations to suit different manufacturing processes.
Common options include:
Suitable for bonding flat laminates and machining operations.
Grooves facilitate resin flow during vacuum infusion and help ensure complete wet-out of large composite structures.
Small holes improve resin distribution throughout the laminate during infusion, reducing dry spots and improving laminate quality.

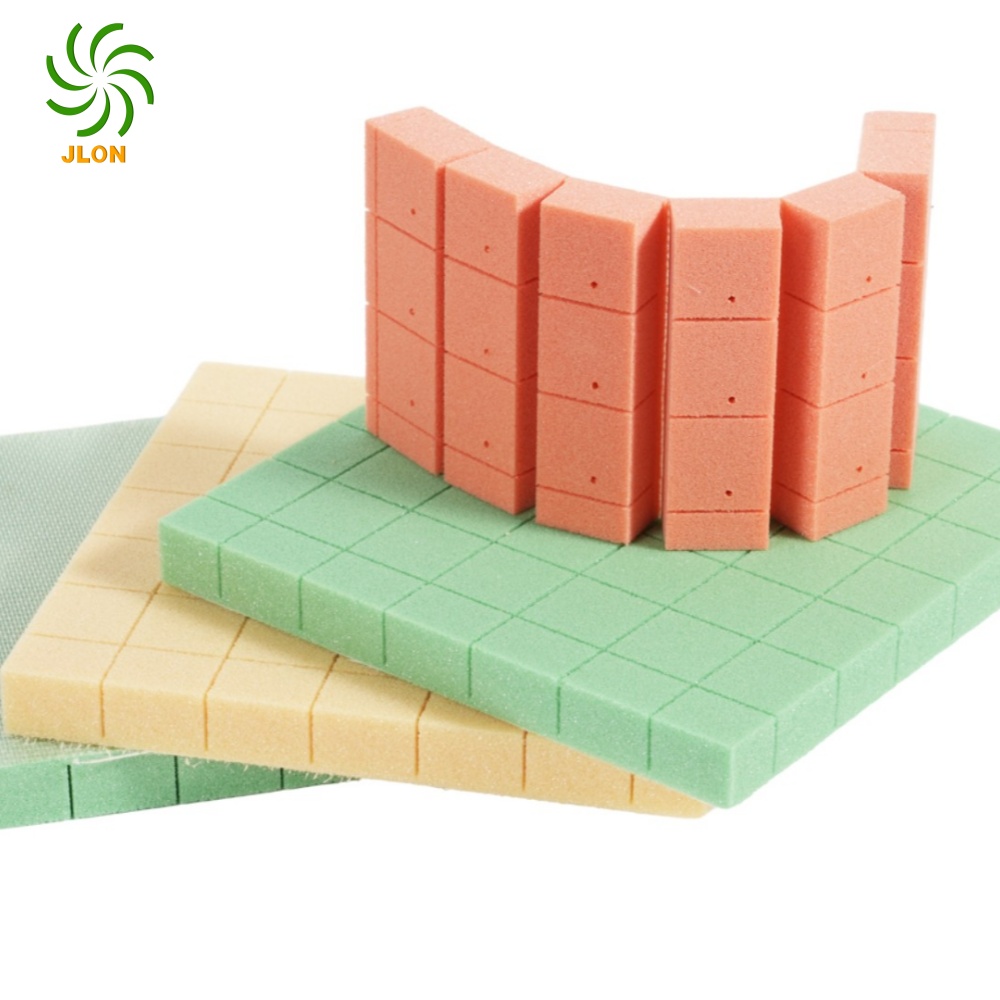

Fiberglass scrim improves handling flexibility, allowing foam sheets to conform to curved moulds without separating individual blocks.
These processing options enable manufacturers to improve production efficiency while maintaining excellent laminate quality.
One of the biggest advantages of PVC foam core is its compatibility with multiple composite manufacturing methods.
A cost-effective process commonly used for boats, tanks, architectural panels, and customized composite parts.
Vacuum infusion has become the preferred manufacturing process for large composite structures because it provides excellent fiber wet-out, reduced void content, and improved laminate consistency.
PVC foam with grooved and perforated surfaces is particularly suitable for this process.
RTM offers excellent dimensional accuracy and repeatability for medium- to high-volume production.
High-performance aerospace and racing components often combine prepreg carbon fiber with high-quality PVC foam core to achieve exceptional mechanical performance.
Used in automotive and industrial production where short cycle times and high productivity are required.
PVC foam core has become a standard material across numerous industries due to its lightweight structure and outstanding mechanical performance.

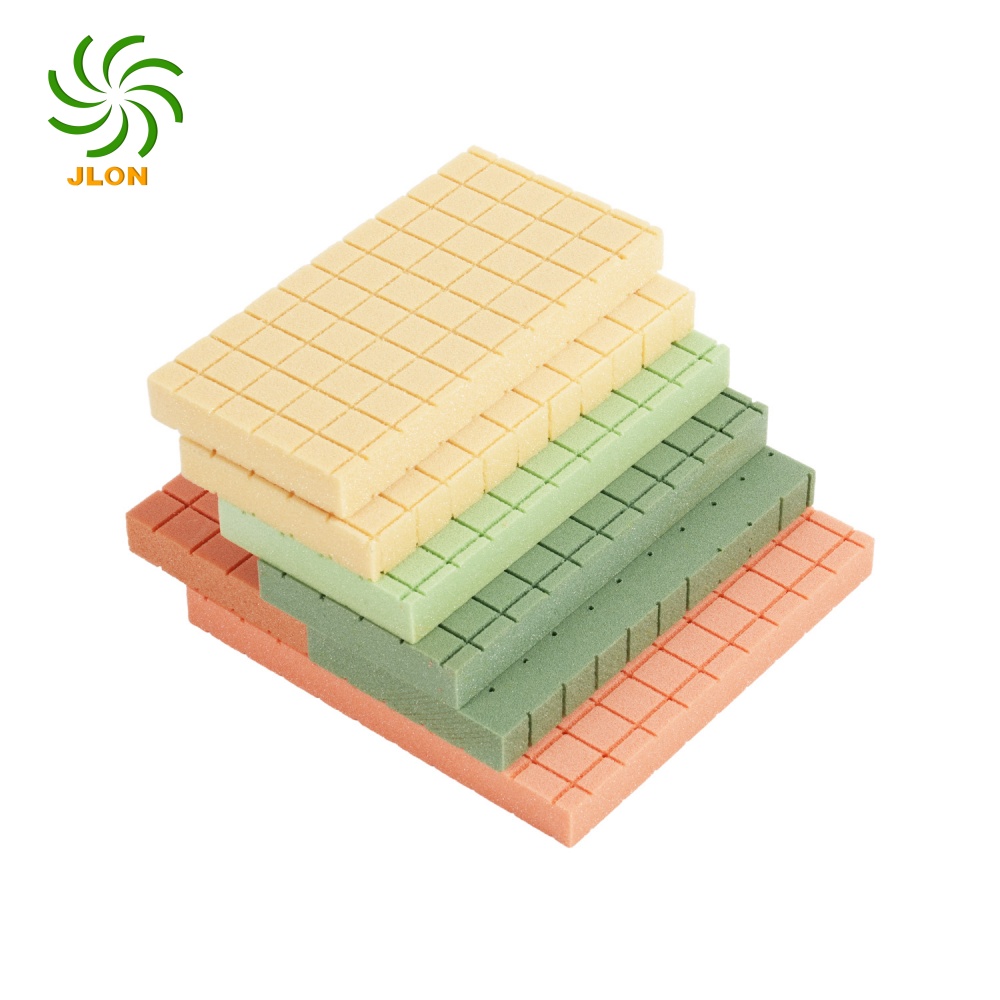

Marine applications represent one of the largest markets for PVC foam core.
Typical applications include:
Yacht hulls
Boat decks
Bulkheads
Cabin roofs
Cockpit floors
Superstructures
Racing sailboats
Patrol boats
Its low water absorption and corrosion resistance make it ideal for long-term exposure to marine environments.
Modern wind turbine blades require lightweight materials capable of withstanding millions of fatigue cycles.
PVC foam core is widely used in:
Blade shells
Shear webs
Root reinforcement areas
Structural sandwich sections
Its excellent fatigue resistance contributes to longer service life and improved blade reliability.
Weight reduction is critical for unmanned aerial vehicles and aerospace components.
PVC foam core is commonly used in:
Drone wings
Fuselages
Radomes
Interior panels
Fairings
Its high stiffness-to-weight ratio helps improve flight efficiency and payload capacity.
PVC foam core is increasingly used in:
Rail vehicle interiors
Bus panels
Truck bodies
Recreational vehicles
Electric vehicle components
By reducing structural weight, manufacturers can improve fuel efficiency and increase payload.
Other applications include:
Industrial equipment covers
Architectural composite panels
Sporting goods
Medical equipment
Radar systems
Renewable energy structures
Selecting the right core material depends on the application's mechanical requirements, environmental conditions, and budget.
Feature | PVC Foam | PET Foam | Balsa Wood |
Weight | Excellent | Excellent | Good |
Water Resistance | Excellent | Good | Moderate |
Fatigue Resistance | Excellent | Good | Good |
Impact Resistance | Excellent | Good | Moderate |
Temperature Resistance | High | Moderate | Moderate |
Consistency | Excellent | Excellent | Natural variation |
Marine Performance | Excellent | Good | Good |
Sustainability | Good | Excellent | Renewable |
PVC foam is often preferred for demanding structural applications where long-term durability, low water absorption, and reliable mechanical performance are essential.
When selecting a PVC foam core, consider the following factors:
Density: Match density to structural load requirements.
Thickness: Determine based on stiffness and design specifications.
Manufacturing Process: Choose grooved, perforated, or plain surfaces according to your production method.
Operating Environment: Consider temperature, humidity, chemicals, and UV exposure.
Mechanical Requirements: Evaluate compression strength, shear strength, and fatigue performance.
Cost Optimization: Balance material performance with project budget.
Working with an experienced supplier can help optimize material selection and improve manufacturing efficiency.
At JLON Composite, we supply high-quality PVC foam core materials for customers worldwide in the marine, wind energy, transportation, aerospace, and industrial sectors.
Our advantages include:
Closed-cell cross-linked PVC foam
Density range from 45 to 300 kg/m³
Excellent mechanical properties and dimensional stability
Grooved, perforated, and scrim-backed options available
CNC machining and customized cutting services
Consistent product quality
Reliable global supply and fast delivery
Technical support for material selection and processing
With years of experience in composite materials, JLON helps customers achieve lightweight, durable, and cost-effective sandwich structures for demanding applications.
PVC foam core has a closed-cell structure with very low water absorption, making it highly suitable for marine and outdoor applications.
It is widely used in marine, wind energy, aerospace, UAV, transportation, industrial equipment, and construction.
Yes. Grooved and perforated PVC foam core is specifically designed to improve resin flow during vacuum infusion.
The appropriate density depends on structural loading, stiffness requirements, and weight targets. Lower densities are ideal for lightweight components, while higher densities are recommended for heavily loaded areas.
Both materials offer excellent performance. PVC foam generally provides superior fatigue resistance and marine durability, while PET foam offers advantages in recyclability and cost for certain applications.
Polyvinyl Chloride (PVC) foam core remains one of the most versatile and reliable structural core materials for composite sandwich construction. Its combination of lightweight performance, excellent mechanical properties, low water absorption, and broad processing compatibility makes it an ideal choice for demanding applications across marine, wind energy, transportation, aerospace, and industrial markets.
Whether you are designing a high-performance yacht, manufacturing wind turbine blades, or developing lightweight transportation components, selecting the appropriate PVC foam core can significantly improve structural efficiency, durability, and long-term performance.
If you are looking for a dependable supplier of high-quality PVC foam core materials, JLON Composite offers a comprehensive range of solutions backed by technical expertise, customization capabilities, and global supply experience. Contact our team to discuss your project requirements and discover the most suitable core material for your next composite application.
