As composite manufacturing continues to evolve, closed-mold technologies such as Vacuum Infusion, Resin Transfer Molding (RTM), Light RTM, and VARTM have become the preferred production methods for high-performance FRP components. Compared with traditional hand lay-up, these processes offer better laminate quality, lower emissions, improved fiber-to-resin ratios, and greater production consistency.
However, achieving these advantages depends not only on resin selection and reinforcement fabrics but also on choosing the correct Core-Mat for Vacuum Infusion. Many manufacturers mistakenly use conventional hand lay-up core materials in infusion processes, resulting in poor resin flow, dry spots, inconsistent thickness, and reduced mechanical performance.
This guide explains how to select the right Infusion Core-Mat for closed-mold composite manufacturing and highlights the key factors engineers and purchasing professionals should evaluate before choosing a supplier.

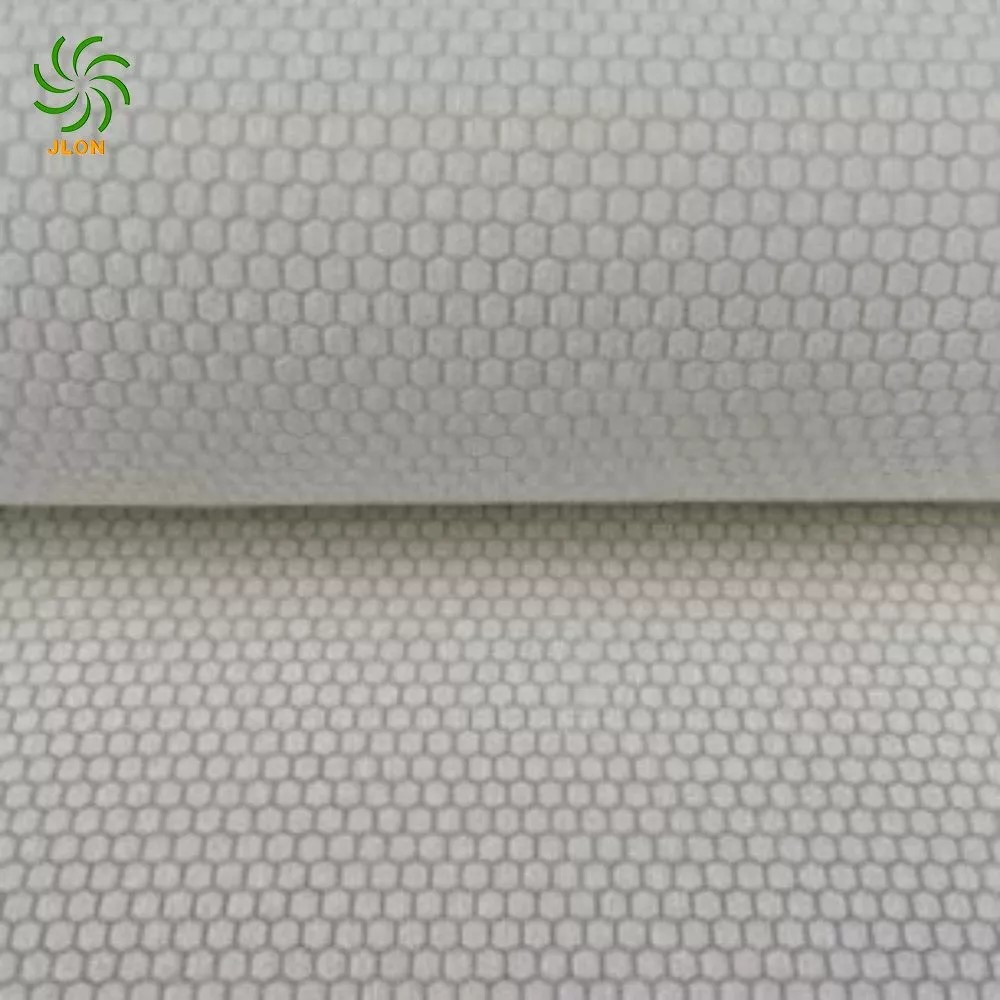

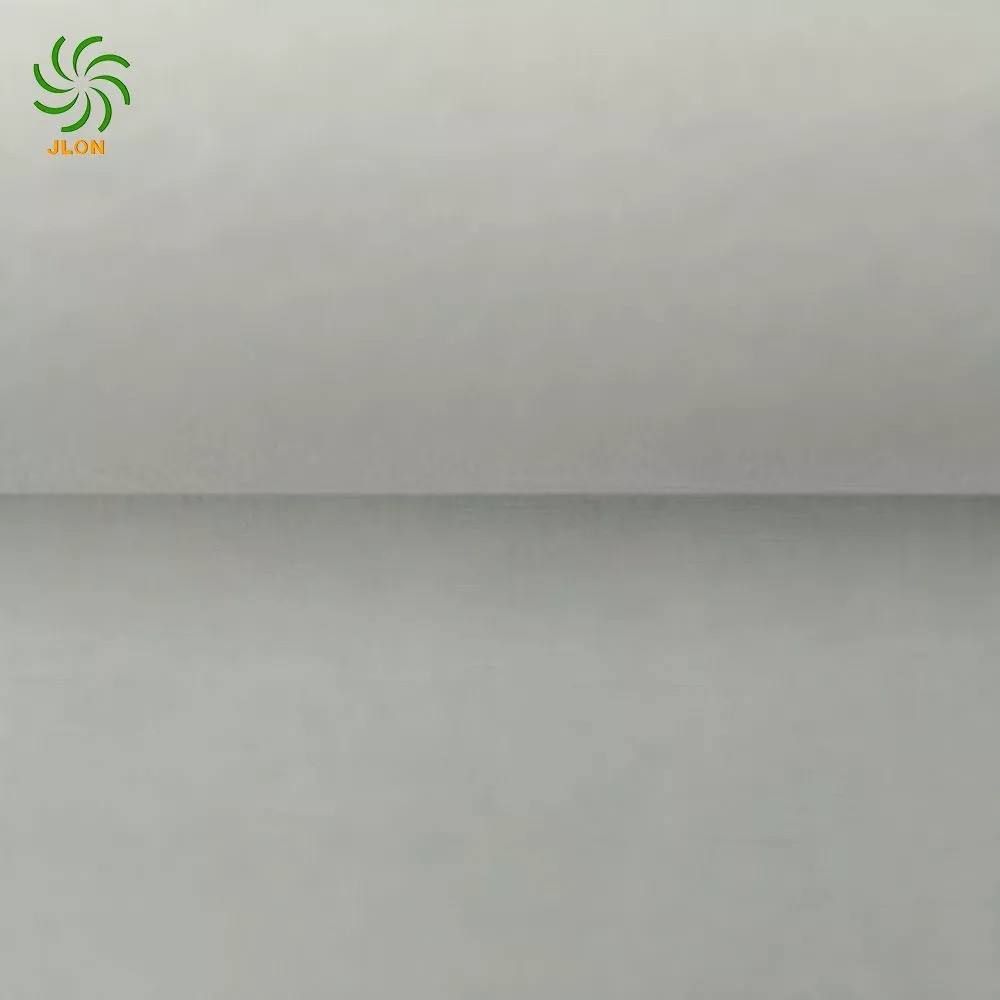

A Core-Mat for Vacuum Infusion is a lightweight nonwoven core material specifically designed for closed-mold composite manufacturing. Unlike conventional hand lay-up Core-Mat products, infusion-grade Core-Mat features a carefully engineered structure that allows resin to flow quickly and uniformly under vacuum pressure while maintaining stable thickness during molding.
Once impregnated with resin, the material forms a lightweight sandwich core that increases panel stiffness without adding significant weight.
Typical applications include:
Marine hulls and decks
Wind turbine nacelles and covers
Railway interior panels
Truck and bus body panels
Industrial equipment housings
Sanitary ware
Composite tanks and containers
Because resin permeability is optimized, RTM Core-Mat helps reduce voids while improving laminate consistency and production efficiency.
Closed-mold technologies create very different processing conditions compared with hand lay-up.
During vacuum infusion, resin must travel long distances under negative pressure. If the core material restricts resin flow, manufacturers may encounter:
Dry spots
Air entrapment
Uneven wet-out
Resin-rich areas
Surface print-through
Longer filling times
An Infusion Core-Mat is specifically designed with controlled permeability to promote smooth resin distribution throughout the laminate.
The result includes:
Faster mold filling
More uniform laminate quality
Reduced resin waste
Better dimensional accuracy
Improved surface finish
Higher production efficiency
These benefits are especially important when manufacturing large composite structures such as boat hulls, wind energy components, and transportation panels.
Although both materials are used to increase stiffness and reduce weight, they are optimized for different manufacturing processes.
Feature | Hand Lay-Up Core-Mat | Infusion Core-Mat |
Manufacturing Process | Open Mold | Vacuum Infusion, RTM, Light RTM |
Resin Flow | Manual Wet-Out | High Resin Permeability |
Thickness Stability | Moderate | Excellent |
Resin Distribution | Operator Dependent | Uniform Under Vacuum |
Production Efficiency | Lower | Higher |
Surface Quality | Good | Excellent |
Best Applications | General FRP | High-Performance Composite Parts |
Selecting the wrong material may negatively affect laminate quality and increase production costs.
The first consideration is resin compatibility.
A high-quality Core-Mat for RTM should perform well with:
Polyester Resin
Vinyl Ester Resin
Epoxy Resin
The fiber structure should allow complete wet-out without excessive resin consumption.
For epoxy systems used in aerospace, wind energy, and premium marine applications, consistent resin flow is especially important.
Resin permeability is one of the most important properties of an Infusion Core-Mat.
Good permeability provides:
Faster filling time
Reduced injection pressure
Better laminate consistency
Fewer dry areas
Lower rejection rates
For large molds, high permeability becomes even more critical because resin must travel much longer distances before curing begins.
Core-Mat thickness influences stiffness, weight, resin consumption, and finished laminate performance.
General recommendations include:
Thickness | Typical Applications |
2 mm | Thin panels, transportation interiors |
3 mm | Marine panels, industrial covers |
4 mm | Structural FRP components |
5 mm | Boat hulls, large sandwich panels |
Selecting excessive thickness may increase resin consumption without providing proportional structural benefits.
During vacuum infusion, atmospheric pressure compresses the laminate.
A premium RTM Core-Mat should maintain its designed thickness throughout processing.
Stable thickness provides:
Consistent panel stiffness
Better dimensional accuracy
Uniform laminate thickness
Improved mechanical properties
Poor compression recovery often results in thinner laminates and lower structural performance.
Different industries require different Core-Mat characteristics.
Priority:
Lightweight
Excellent surface finish
Water resistance
High stiffness
Typical products:
Boat hulls
Decks
Cabin roofs
Interior panels
Priority:
Weight reduction
Impact resistance
Dimensional stability
Applications:
Truck body panels
Bus roofs
Railway interiors
Caravan panels
Priority:
Large panel infusion
Long resin flow distance
Stable laminate quality
Applications:
Nacelles
Covers
Secondary composite components
Priority:
Corrosion resistance
Smooth surface
Cost efficiency
Applications:
Tanks
Chemical equipment
Machine covers
Sanitary products
Many manufacturers focus only on price, but selecting the wrong material often increases total production cost.
Common mistakes include:
Conventional products may restrict resin flow, causing incomplete impregnation.
Different resin systems require different flow characteristics.
Each laminate design should be optimized based on stiffness requirements rather than previous projects.
Vacuum pressure can significantly reduce thickness if the Core-Mat lacks adequate compression resistance.
Reliable suppliers should provide technical data sheets, application recommendations, and processing guidance.
JLON Composite supplies high-quality Infusion Core-Mat solutions for manufacturers seeking consistent performance in closed-mold composite production.
Key advantages include:
Excellent resin permeability
Uniform thickness
Stable compression performance
Compatible with polyester, vinyl ester, and epoxy resins
Suitable for Vacuum Infusion, RTM, Light RTM, and VARTM
Easy processing
Consistent product quality
Available in multiple thicknesses and specifications
Technical support for application selection
JLON products are widely used in marine, transportation, industrial equipment, renewable energy, and other advanced composite applications.
Whether you are manufacturing boat hulls, truck panels, composite tanks, or industrial FRP parts, selecting the appropriate Core-Mat for Vacuum Infusion can significantly improve production efficiency and finished part quality.
Core-Mat is ideal for applications requiring moderate stiffness, simplified processing, and lower material costs. For highly loaded structural sandwich constructions, PVC foam, PET foam, or PMI foam may still be the preferred solution.
Yes. High-quality infusion-grade Core-Mat is compatible with epoxy, vinyl ester, and polyester resin systems.
Not necessarily. Core-Mat increases laminate thickness and stiffness, but resin consumption depends on the material structure and laminate design. A well-designed infusion-grade Core-Mat optimizes resin distribution and minimizes waste caused by dry spots or rework.
Typical industries include marine, transportation, wind energy, sanitary ware, industrial equipment, and composite panel manufacturing.
Thickness should be selected according to structural requirements, panel span, load conditions, and target weight. Consulting your material supplier during the design stage is recommended.
Selecting the right Core-Mat for Vacuum Infusion and RTM Processing is essential for producing lightweight, high-quality composite structures with consistent mechanical performance.
Rather than choosing materials based solely on price, manufacturers should evaluate resin compatibility, permeability, thickness, compression resistance, and end-use requirements. The right material can shorten infusion time, improve laminate quality, reduce manufacturing defects, and lower overall production costs.
