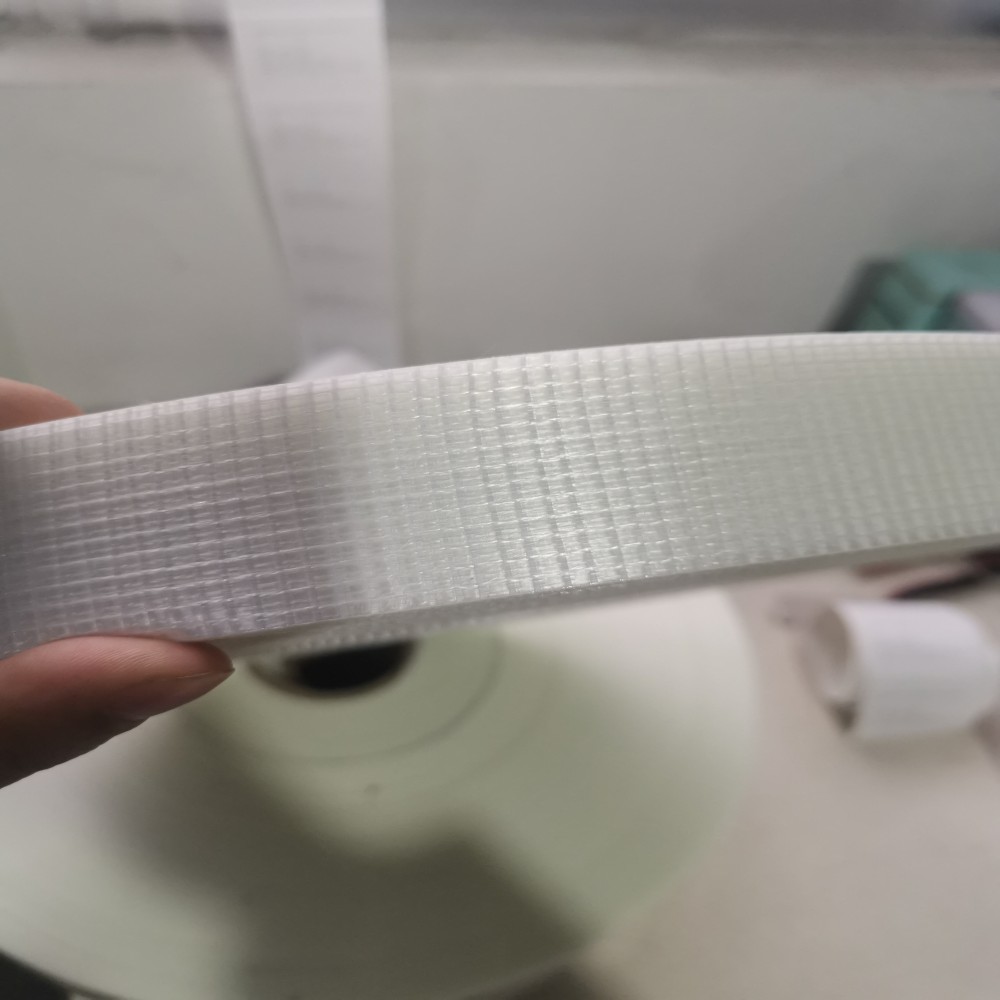

Fiberglass reinforced tape is a high-performance industrial adhesive tape made from a polyester (PET) film reinforced with a glass fiber mesh. This composite structure provides exceptional strength and durability, outperforming standard adhesive tapes.
It features excellent tensile strength, minimal elongation, and superior wear resistance, making it ideal for demanding applications such as cable bundling, heavy-duty reinforcement, and structural fixation. The embedded fiberglass network ensures stability under stress and prevents deformation over long-term use.
Reliable and consistent in quality, fiberglass reinforced tape is widely used across electrical, construction, packaging, and composite manufacturing industries.
Property | Specification |
Type | Fiberglass Mesh Tape |
Substrate | PET (Polyester Film) |
Total Thickness | 180 ± 10 μm |
Width | 30 / 40 mm (customizable) |
Color | Transparent |
Weight | 110 ± 10 g/m² |
Warp Density | 8 ± 1 strands/25 mm |
Weft Density | 8 ± 1 strands/25 mm |
Tensile Strength | ≥ 250 N/25 mm |
Elongation | ≤ 6% |
Temperature Resistance | 0 – 60°C |
Shelf Life | 6 months (stored at 20°C & 50% RH) |
Download Technical Data Sheet (TDS)
Fiber Glass Reinforced Tape MSDS.pdfFiber Glass Reinforced Tape TDS.pdf
· Consistent product quality with strict manufacturing control
· Advanced production technology ensuring stable performance
· Custom sizes, widths, and specifications available
· Fast production lead time and reliable global delivery
· Professional technical support for industrial applications
· Extensive experience in fiberglass and composite materials
Q1: What is fiberglass reinforced tape used for?
A: It is mainly used for cable bundling, reinforcement, heavy-duty packaging, and industrial bonding applications requiring high strength.
Q2: What is the difference between fiberglass tape and filament tape?
A: Fiberglass reinforced tape is a type of filament tape that uses glass fiber filaments for reinforcement, providing higher tensile strength and better durability than standard tapes.
Q3: Can fiberglass reinforced tape be used for heavy packaging?
A: Yes, it is widely used for heavy-duty carton sealing, pallet reinforcement, and securing large or bulky goods during transportation.
Q4: Can you customize the tape specifications?
A: Yes, width, length, thickness, and other specifications can be customized to meet your application requirements.
Q5: How should fiberglass reinforced tape be stored?
A: Store in a clean, dry environment at around 20°C and 50% relative humidity to ensure optimal performance and shelf life.
