CF-12/16-150
JLON
1000mm
0.14mm
Biaxial/Triaxial
black
6815
50m/100m

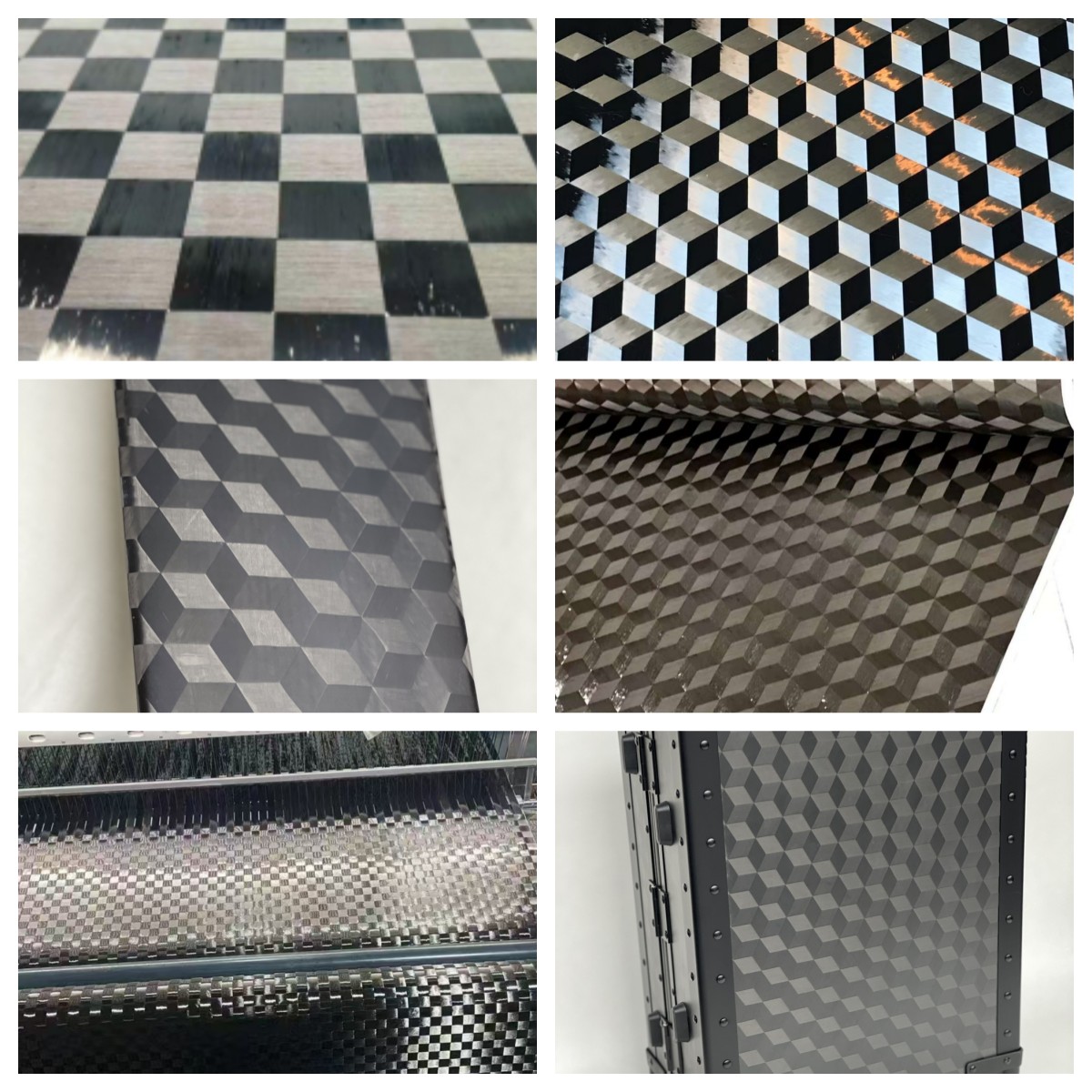

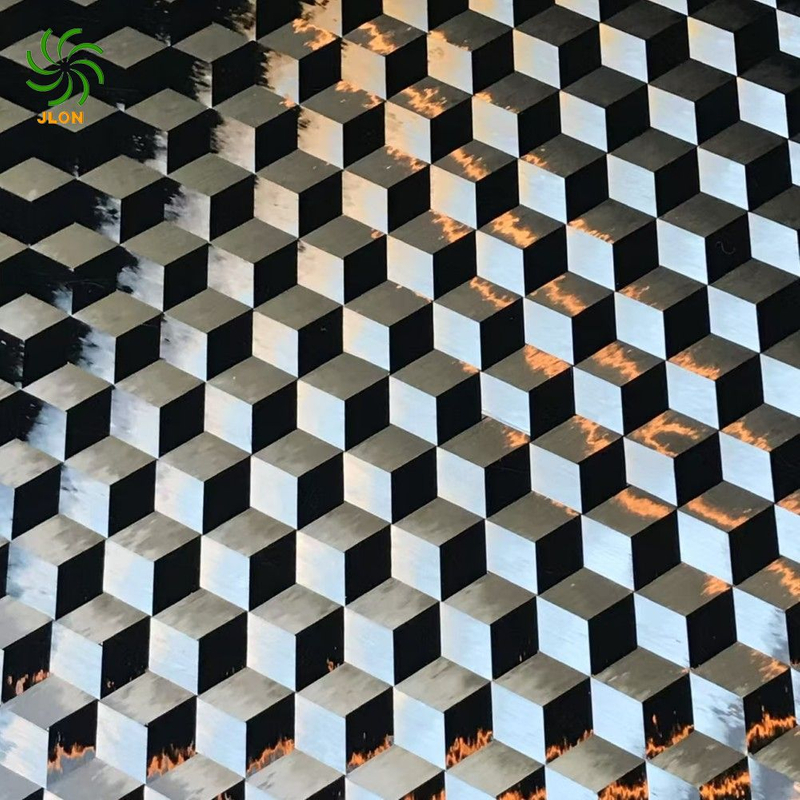

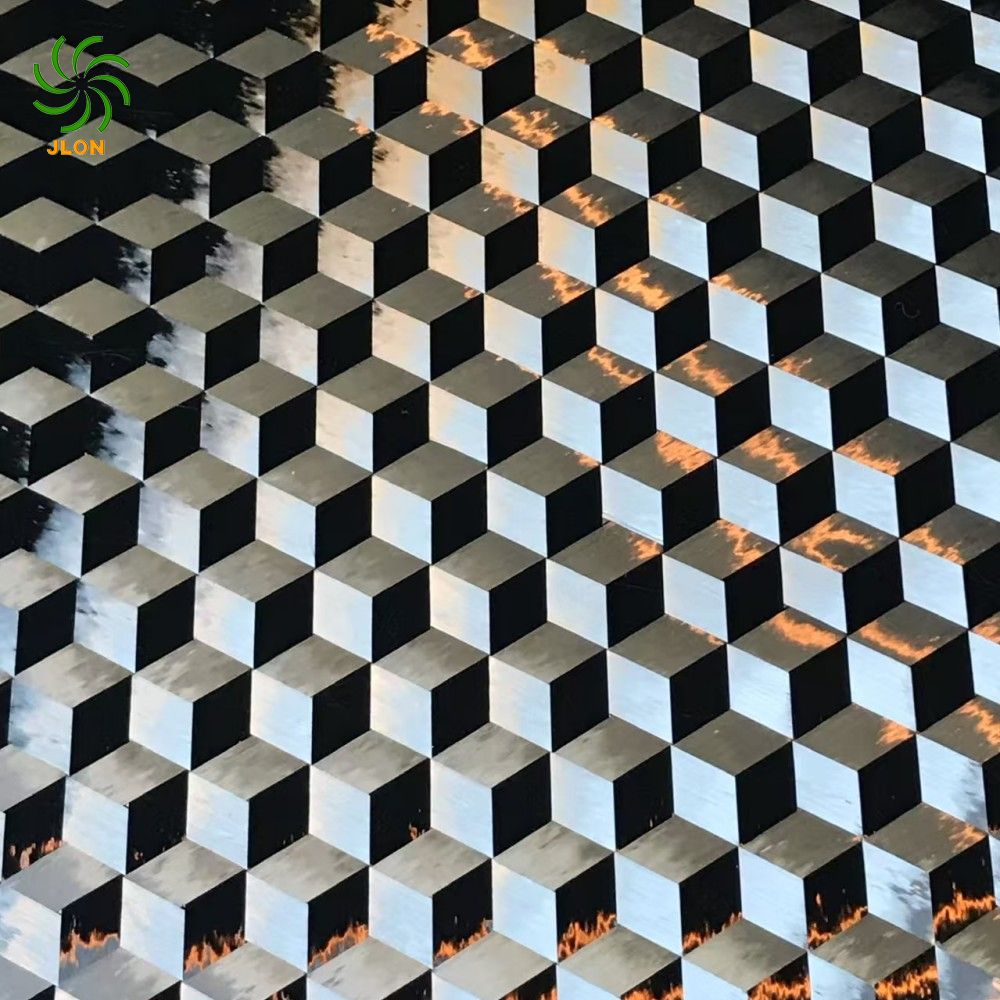

TDS Carbon Spread Tow Fabric.pdfCarbon spread tow fabric is a type of reinforcement fabric used in composite materials, typically in industries like aerospace, automotive, and sports equipment.
It is made by spreading carbon fibers into a wide, flat tape, which reduces the thickness of the fabric while maintaining its strength. This type of fabric is ideal for applications that require high-strength, lightweight materials but with a thinner profile compared to traditional woven fabrics. The spread tow fabric provides advantages like reduced resin consumption, better impact resistance, and improved mechanical properties.
There are two kinds of carbon spread tow fabric: biaxial and triaxial.
Product Name：Carbon spread tow fabric Triaxial
Code | Weight(gsm) | Filament Width(mm) | Thickness(mm) |
CF-12/16-150 | 150 | 16 | 0.14 |
Product Name：Carbon spread tow fabric Biaxial
Code | Weight(gsm) | Filament Width(mm) | Thickness(mm) | Weave |
12/8-200P | 200 | 8 | 0.20 | Plain |
12/8-200T | 200 | 8 | 0.20 | Twill |
12/20-80P | 80 | 20 | 0.08 | Plain |
12/18-88P | 88 | 18 | 0.088 | Plain |
12/16-100P | 100 | 16 | 0.10 | Plain |
A: Yes, JLON is leading supplier for carbon fiber material.
We usually discuss with customers and help them find solutions.
We can supply 1K/3K/4K/12K/24K carbon fiber fabric.
Glass Carbon fiber can be customized too.
A: Usually a sample will be prepared within one week after specification agreed.Usually A4 size.
A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.
Common type like 3K plain weave 200gsm is available in stock for sale .
A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
A: Usually we do EXW, FOB, CIF, and DDU.
