Introduction of Fiberglass Tissue

Fiberglass tissue, a lightweight and high-performance nonwoven material, has become a cornerstone in numerous industrial and consumer applications. Made from ultra-fine glass fibers, this engineered material combines exceptional strength, thermal resistance, and adaptability.


Fiberglass tissue starts with silica sand, the primary raw material, which is melted at high temperatures (1400℃) to form molten glass. This molten glass is then extruded through platinum-rhodium bushings to produce ultrafine glass filaments, typically 3–13 microns in diameter. To bind these filaments into a cohesive web, a thermosetting resin (e.g., acrylic, epoxy, or phenolic) is applied during production.


Specification of Fiberglass Tissue

Excellent fiber distribution

Very smooth surface

Excellent flexibility

Good tensile and tear resistance

Good dimensional stability



Types of Fiberglass Tissue

Fiberglass tissue for carpet and floor

Introduction:

The fiberglass tissue is mainly used as substrates for the carpet and floor. The fiberglass mat tissue made from this substrate is an ideal decorative material for flooring decoration and carpet decoration in domestic residences on account of their characteristics such as toughness appearance, non-shrinkage and non-deformation.

Our max width for fiberglass non-woven carpet tissue and fiberglass floor tissue is 4.12M width. JLON non woven fiberglass flooring mat tissue and fiberglass in carpet is widely confirmed by clients.


Specification:

Item

Unit

Type



S-FM0.4

S-FM0.3

S-FM0.5

S-FM0.6

Area weight

g/m2

40

35

50

60

Binder content

%

22±3

22±3

18±3

18±3

Thickness

mm

0.42±0.04

0.33±0.03

/

/

Tensile MD

N/5cm

≥136

≥120

≥136

≥136

Tensile CMD

N/5cm

≥112

≥80

≥90

≥90

Wet strength MD

N/5cm

≥49

≥35

/

/

Air permeability

M3/m2*s

≤4.40

4.0±0.5

≤4.5

≤4.5


Picture:

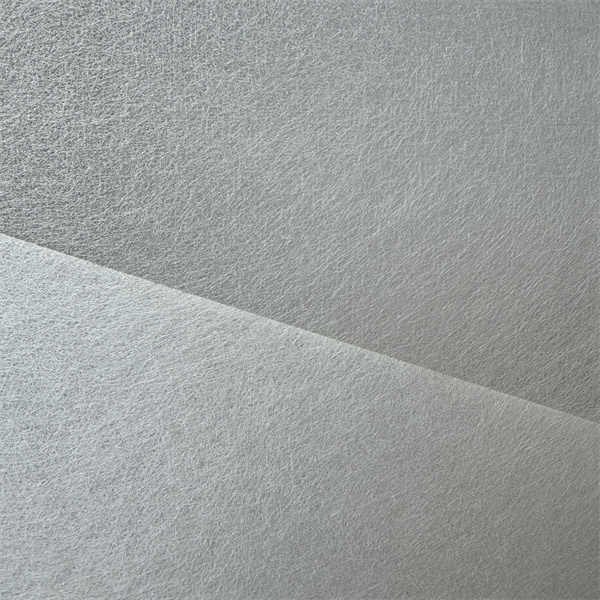

Fiberglass tissue-2



Fiberglass tissue for surface (Hand lay-up FRP and Wrap FRP and pultrusion)

Introduction:

Fiberglass surface tissue is a thin nonwoven made of randomly distributed glass fiber. It’s ideal for improving surface finishes, and has excellent chemical and weather resistance.

5cm wide tissue is specially designed for pipe winding. It has higher strength which ensure non-broken during production process.


Application:

It is suitable for hand lay up, press moulding and filament winding process



Specification:

ITEM

STANDARD VALUE

STANDARD NO.

Area Weight

(g/m2)

30±3.0

GB/T9914.3

Binder content

(%)

7±3

GB9914.2

Moisture content

(%)

≤0.5

GB11966

Tensile strength

Machine direction(N/5cm)

≥30

GB7689.5

Wetting time(two layers)

(s)

≤10.0

N/A

Width (mm)

50-1000

N/A


Picture:

Fiberglass tissue-3



Fiberglass color tissue

Introduction:

Color polyester tissue is produced by equipment and technology introduced from Germany. It has more than 200 patterns of wood grain, marble, camouflage, mesh pattern, flower and various single color (red, black, yellow, green, blue, etc.), and can also be customized according to customers' needs. . The color polyester tissue is directly used in the FRP process, and it is easy to obtain a colorful and highly personalized surface effect.
With polyester tissue, the absorption of resin is more sufficient, and a resin-rich layer is formed on the surface of the FRP to make the surface smooth and beautiful. The use of polyester tissue in the FRP process can significantly improve the appearance of the product, improve impact and wear resistance, improve corrosion resistance and weather resistance, and make FRP products suitable for more demanding environments.


Specification:

Area weight: 90gsm (polyester tissue 40gsm, fiberglass tissue 40gsm)
Width: 20-3000mm
Length: 50-2500m


Picture:

Fiberglass tissue-8


Fiberglass black tissue

Introduction:

This black non-woven glass tissue is fire-resistant and alkali-free fiberglass tissue ,with dyeing process to made it black color.
This black non-woven glass tissue is mainly used As surface layer of high performance sound proofing glass wool insulation product.
This fiberglass mat can be customized according to customer's special needs e.g.: high tensile strength, flame retardant (ASTM Standard E84), VOC (Halogen and Formaldehyde free) etc. For more information please find following specification or contact us.



Features:

Fire resistance.

High sound absorption.
Good cover capability.
Can use directly by ironing after laminated with PE emberance on its back.

Provides support for insulation with high strength

Compatible with bitumen and asphalt for uniform coating

Provides reinforcement and dimensional stability



Applications:

As surface layer of high performance sound proofing glass wool insulation product.


Picture:

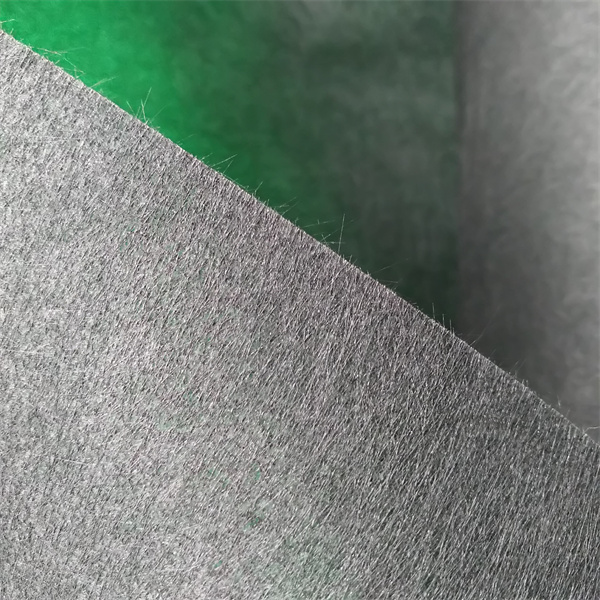

Fiberglass tissue7




Manufacturing Process of Fiberglass Tissue

Melting & Fiberization:

Silica sand, limestone, and soda ash are melted in a furnace. The molten glass is drawn into continuous filaments via bushings.


Process information:

Fibers are randomly dispersed using air or water streams to create a uniform, nonwoven mat.


Binder Application:

A resin binder is sprayed onto the web to stabilize the structure.


Curing:

The mat passes through an oven (150–250°C) to cure the binder, solidifying the tissue.


Finishing:

The tissue is cooled, trimmed, and rolled into sheets or rolls for distribution.

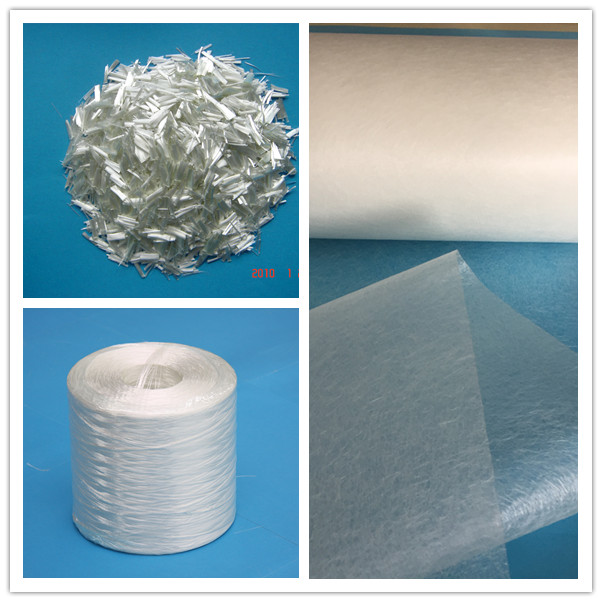

Fiberglass tissue-1



Global market analysis of FIberglass Tissue

The global fiberglass tissue market is driven by demand in construction, automotive, and aerospace industries, valued for its lightweight, corrosion resistance, and thermal insulation properties. Key growth factors include urbanization, infrastructure development, and the shift toward energy-efficient materials. In construction, it is widely used in roofing, insulation, and wall reinforcement, particularly in green building initiatives. The automotive sector leverages fiberglass tissue for lightweight composites to enhance fuel efficiency and meet emission regulations.

Asia-Pacific dominates the market due to rapid industrialization, particularly in China and India, where construction and automotive manufacturing are expanding. North America and Europe follow, driven by renovation projects and high-performance material requirements in aerospace.

Challenges include fluctuating raw material costs (e.g., silica, resins) and competition from alternatives like carbon fiber. However, innovations in recyclable and high-strength fiberglass tissues offer growth opportunities. Environmental regulations promoting sustainable materials further propel R&D investments.

The market is moderately consolidated, with key players like Owens Corning, Saint-Gobain, and Johns Manville focusing on product diversification and strategic partnerships. Post-pandemic recovery has boosted demand, though supply chain disruptions remain a concern.

Overall, the fiberglass tissue market is projected to grow steadily at a CAGR of ~5-6% through 2030, supported by technological advancements and cross-industry applications, despite cost and substitution pressures.



Top 8 supplier of Fiberglass Tissue in China

JLON Composite is the leading supplier of Fiberglass tissue in China,with more than 15 years of experience in composite material industry.

Serving customers in over 40 countries with a dedicated sales team and technical support.



Where to buy Fiberglass Tissue?

Contact JLON team to get more technical data.
